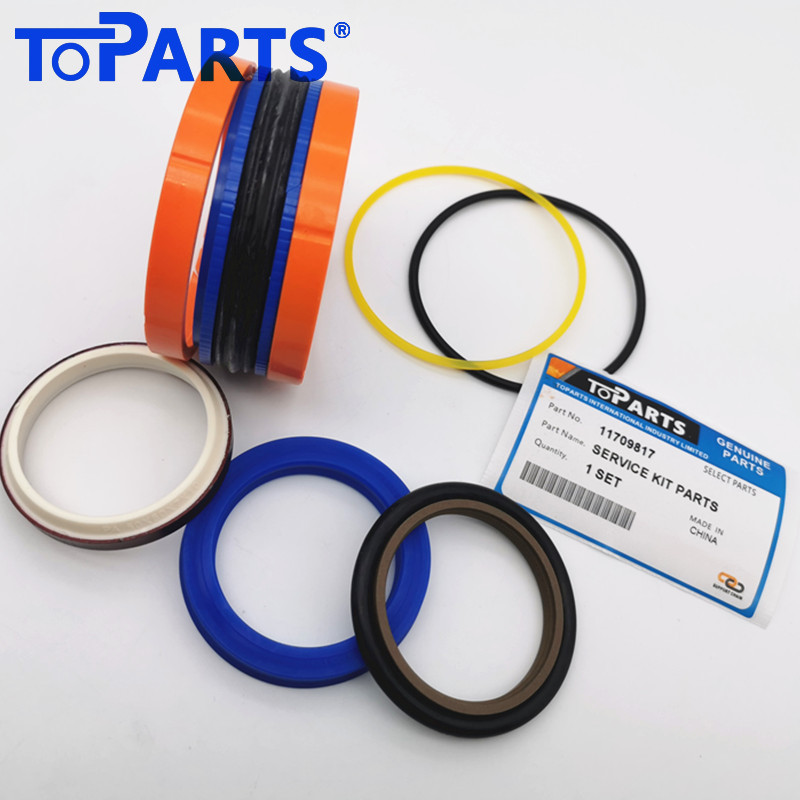

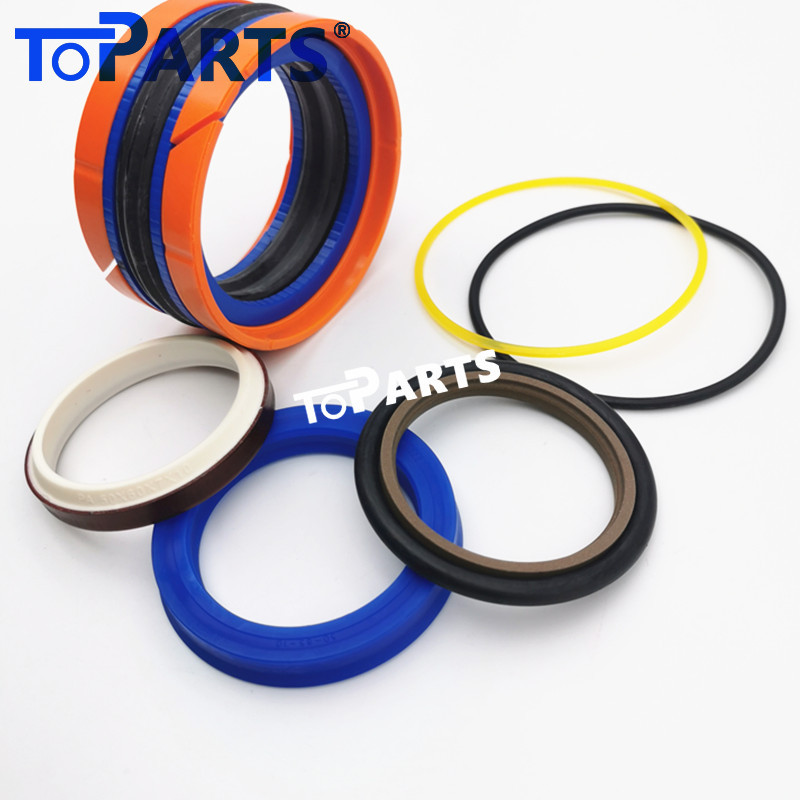

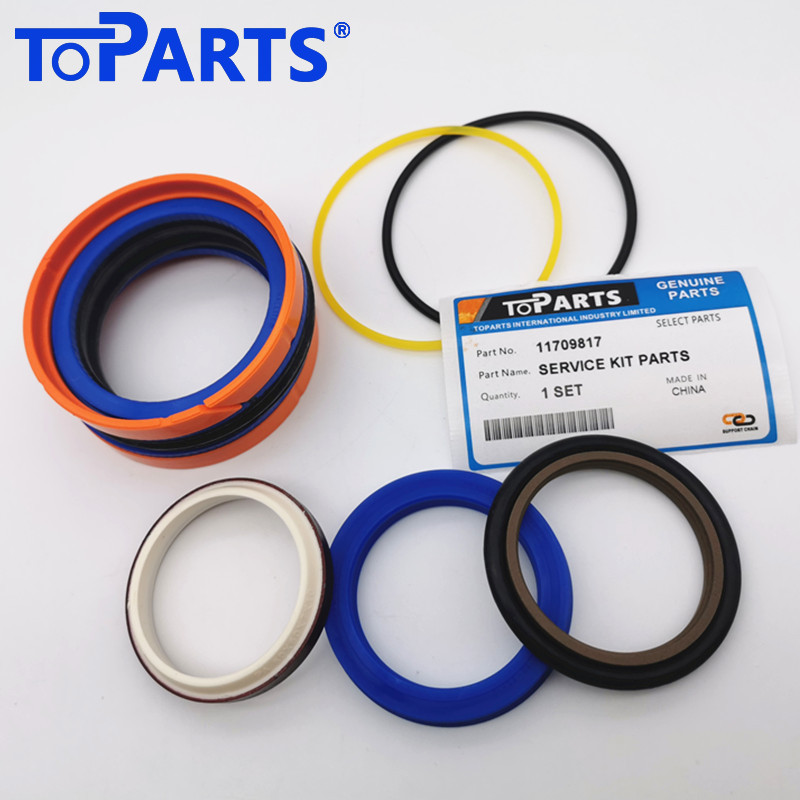

Model:Volvo L120F Wheel Loader Steering Cylinder Seal Kit
Part Number:11709503
Cylinder Number:11107790
Material:HNBR+PTFE+TPU
For:Volvo L90E L120F L120E
Rod:50MM
Piston:95MM
Packaging Details:bag or box +carton
Certification:IOS 9001
Delivery Time:2-5days upon payments confirmed
Position:Volvo Hydraulic Excavator Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
| NO. | Part number | Quantity | Product name |
| VOE17225202(VOE11107790) | 1 | Hydraulic cylinder | |
| 1 | VOE11107832 | 1 | •Cylinder tube |
| 2 | VOE184062 | 1 | •Spherical plain bearing |
| 3 | VOE914538 | 2 | •Snap ring |
| 4 | VOE11107791 | 1 | •Piston rod |
| 5 | VOE11005053 | 1 | •Scraper ring |
| 6 | VOE4784045 | 1 | •Piston rod seal |
| 7 | VOE11107348 | 1 | •Piston rod seal |
| 8 | VOE11107360 | 1 | •Piston rod guide |
| 9 | VOE4787062 | 1 | •Back-up ring |
| 10 | VOE925094 | 1 | •O-ring |
| 11 | VOE11088052 | 2 | •Bushing |
| 12 | VOE4782406 | 1 | •Piston |
| 13 | VOE4833023 | 1 | •Sealing |
| 14 | VOE4782718 | 1 | •Spring pin |
| VOE11709817(VOE11709503) | 1 | Sealing kit |
Exploded view
Product Description
High-Performance Steering Cylinder Seal Kit for Volvo L120F Wheel Loaders
Ensure precise steering control and maximum hydraulic uptime for your Volvo L120F with this premium Steering Cylinder Seal Kit. Specifically engineered to meet or exceed OEM standards, this kit (Part Numbers 11709503 and 11107790) provides a complete solution for repairing leaking or worn steering cylinders.
At Toparts, our seal kits are manufactured using advanced materials designed to handle the high-pressure cycles and rugged conditions typical of wheel loader operations.
Product Features:
Perfect Fitment: Tailored specifically for the Volvo L120F Wheel Loader steering system.
Dual Part Number Support: Fully compatible with OEM numbers 11709503 and 11107790.
Durable Construction: Utilizes high-grade Polyurethane (PU) and Nitrile (NBR) for exceptional wear resistance and sealing integrity.
Responsive Steering: Engineered to prevent internal and external fluid leaks, restoring smooth steering response.
All-in-One Kit: Includes all required rod seals, piston seals, dust seals, and O-rings for a professional cylinder overhaul.
Technical Specifications:
Machine Model: Volvo L120F
Machine Type: Wheel Loader
Component Type: Steering Cylinder
Primary Part Numbers: 11709503, 11107790
Category: Hydraulic Repair Components
