Model:Furukawa F12 hydraulic breaker

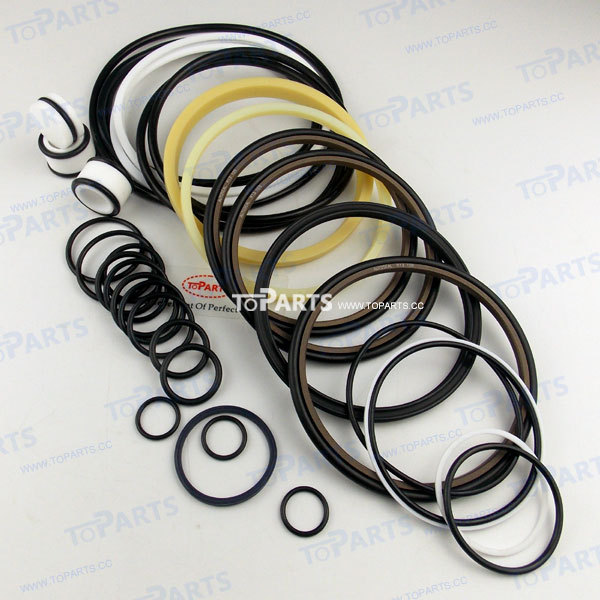

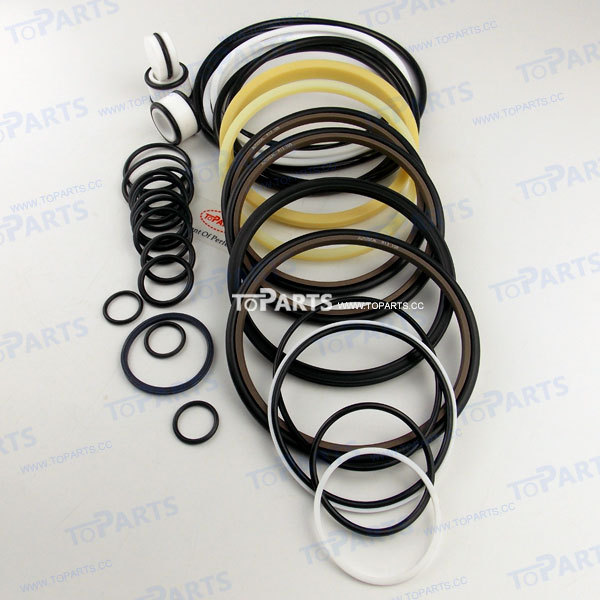

Part Name: F12 hydraulic breaker A+B+C+D+E seal kit
Part Number: F12-92021, SEAL KIT (A); F12-92022, SEAL KIT (B); F12-92023, SEAL KIT (C); F45-92024, SEAL KIT (D); F12-92025, SEAL KIT ( E).
Certification: IOS 9000
Packaging Details: bag or box +carton
Tool: 105MM
Delivery Time: 2-5days upon payments confirmed
Position :FURUKAWA Hydraulic Breaker Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability: 100,000
| FURUKAWA | HB-0.5G | FURUKAWA | HB-1G | FURUKAWA | F-2 |
| FURUKAWA | HB-2G | FURUKAWA | HB-3G | FURUKAWA | F-3 |
| FURUKAWA | HB-5G | FURUKAWA | HB-10G | FURUKAWA | F-4 |
| FURUKAWA | HB-8G | FURUKAWA | HB-18G | FURUKAWA | F-5 |
| FURUKAWA | HB-15G | FURUKAWA | HB-30G | FURUKAWA | F-6 |
| FURUKAWA | HB-20G | FURUKAWA | HB-40G | FURUKAWA | F-9 |
| FURUKAWA | HB-35G | FURUKAWA | F-11 | FURUKAWA | F-12 |
| FURUKAWA | HB-50G | FURUKAWA | F-19 | FURUKAWA | F-20 |
| FURUKAWA | F-17 | FURUKAWA | F-27 | FURUKAWA | F-30 |
| FURUKAWA | F-35 | FURUKAWA | F-45 | FURUKAWA | F-70 |
| FURUKAWA | HB-05R | FURUKAWA | HB-1R | FURUKAWA | HB-2R |
| FURUKAWA | HR-3R | FURUKAWA | HB-4R | FURUKAWA | HB-100 |
| FURUKAWA | HB-200 | FURUKAWA | HB-300 | FURUKAWA | HB-400 |
| FURUKAWA | F-22 | FURUKAWA | F-1 | FURUKAWA | FXJ-175 |
| FURUKAWA | Fxj-275 | FURUKAWA | Fxj-375 | FURUKAWA | Fxj-475 |
| FURUKAWA | FX-15 | FURUKAWA | FX-25 | FURUKAWA | FX-35 |
| FURUKAWA | FX-45 | FURUKAWA | FX-55 | FURUKAWA | FX-65 |
| FURUKAWA | FX-220 | FURUKAWA | FX-360 | FURUKAWA | FX-470 |

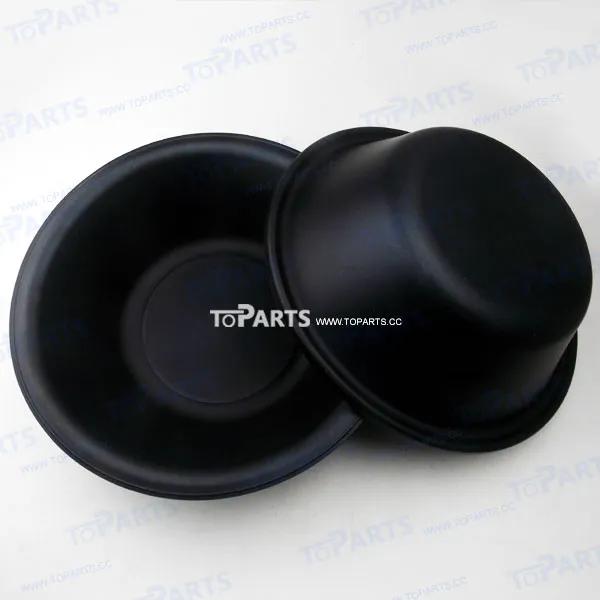

Furukawa F12 hydraulic breaker / Membrane:

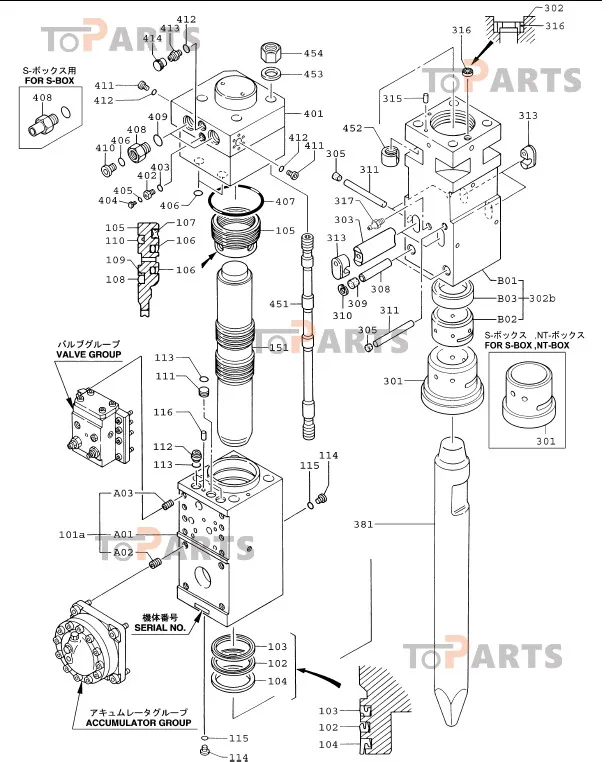

Furukawa F12 hydraulic breaker Parts List
| 1 | F12-10101 | CYLINDER | 1 |
| 101 | . | .CYLINDER | 1 |
| 102 | HB15G-10104 | .INSERT,HELI-SERT | 4 |
| 103 | HB20G-10105 | .INSERT,HELI-SERT | 6 |
| 2 | HB10G-10207 | U-PACKING | 1 |
| 3 | F12-10108 | RING,BUFFER | 1 |
| 4 | HB10G-10210 | SEAL,DUST | 1 |
| 5 | F12-10111 | RETAINER,SEAL | 1 |
| 6 | HB10G-10212 | PACKING,SLIDE | 2 |
| 7 | . | O-RING | 2 |
| 8 | F12-10114 | RING,SEAL | 1 |
| 008-1 | F12-10214 | RING,SEAL | 1 |
| 9 | 161011-00130 | O-RING | 2 |
| 10 | 262031-00130 | RING,BACK-UP | 1 |
| 11 | HB10G-10120 | PLUG | 1 |
| 12 | HB10G-10121 | BUSH | 2 |
| 13 | 160011-00024 | O-RING | 3 |
| 14 | F22-10125 | PIN,KNOCK | 1 |
| 15 | 084891-02000 | PLUG,GPF | 2 |
| 16 | 160011-00011 | O-RING | 2 |
| 17 | F12-11101 | PISTON | 1 |
| 18 | F12-20101 | FRONT | 1 |
| 19 | F12-20102 | HEAD,FRONT | 1 |
| 201 | F12-20103 | .HEAD,FRONT | 1 |
| 202 | F12-20904 | .BUSH,THRUST | 1 |
| 203 | F12-20105 | .RING,THRUST | 1 |
| 20 | F12-20106 | PIN,ROD | 2 |
| 21 | F12-20207 | PIN,STOP | 2 |
| 22 | 001300-20112 | PLUG,RUBBER | 1 |
| 23 | F12-20208 | PLUG,RUBBER | 2 |
| 24 | F12-20107 | PIN,STOP | 1 |
| 25 | 001400-20106 | PIN,FRONT | 2 |
| 26 | 001400-20108 | PLUG,RUBBER | 2 |
| 27 | 264020-00026 | RING,SNAP | 2 |
| 28 | F12-20112 | PLUG,DUST | 4 |
| 29 | F22-10125 | PIN,KNOCK | 1 |
| 30 | F12-20121 | VALVE,CHECK | 1 |
| 31 | 084891-06000 | PLUG,GPF | 1 |
| 32 | 160011-00024 | O-RING | 1 |
| 33 | F12-30201 | HEAD,BACK | 1 |
| 34 | HB15G-30103 | VALVE,CHARGING | 1 |
| 35 | 160011-00018 | O-RING | 2 |
| 36 | HB20G-30109 | PLUG | 1 |
| 37 | 160011-00006 | O-RING | 1 |
| 38 | 160011-00024 | O-RING | 2 |
| 39 | 160021-00160 | O-RING | 1 |
| 40 | F12-30111 | CONNECTOR | 2 |
| 41 | 160011-00029 | O-RING | 2 |
| 42 | 084891-06000 | PLUG,GPF | 2 |
| 43 | 160011-00024 | O-RING | 2 |
| 44 | 084869-04000 | CONNECTOR,MALE | 2 |
| 45 | F12-30113 | CAP | 1 |
| 46 | F12-36101 | BOLT,THROUGH | 4 |
| 47 | HB15G-36202 | NUT | 4 |
| 48 | F12-36105 | WASHER | 4 |
| 49 | HB15G-36206 | NUT,HEXAGON | 4 |
| 501 | F12-25211 | ROD,FLAT | 1 |
| F12-25213 | POINT,MOIL | ALTERNATIVE | 1 |
| F12-25214 | POINT,WEDGE | ALTERNATIVE | 1 |
| F12-25216 | ROD,BALLPOINT | ALTERNATIVE | 1 |
| F12-92021 | SEAL KIT | (A) | 1 |
| F12-92022 | SEAL KIT | (B) | 1 |
Our advantage:
1. Best quality: the rubber materials is best and it have better performance.
2.Special in your market.Special package and best quality can get more customer and better profit.
3.Install Convenient: Every size have their own position, It is good for install and looks more professional.
4.long lifetime, with special skill to help seals resist oxidation, water, oil.
5.With sponge protect.The sponge can help o-rings resist oxidation ,it can keep long time.
6.Covered NOK parts
