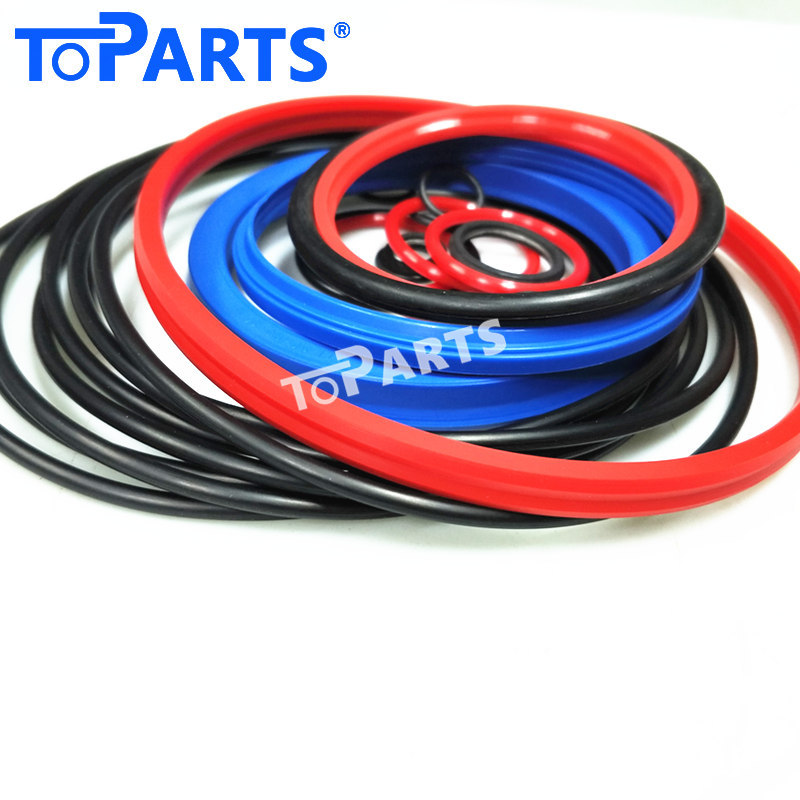

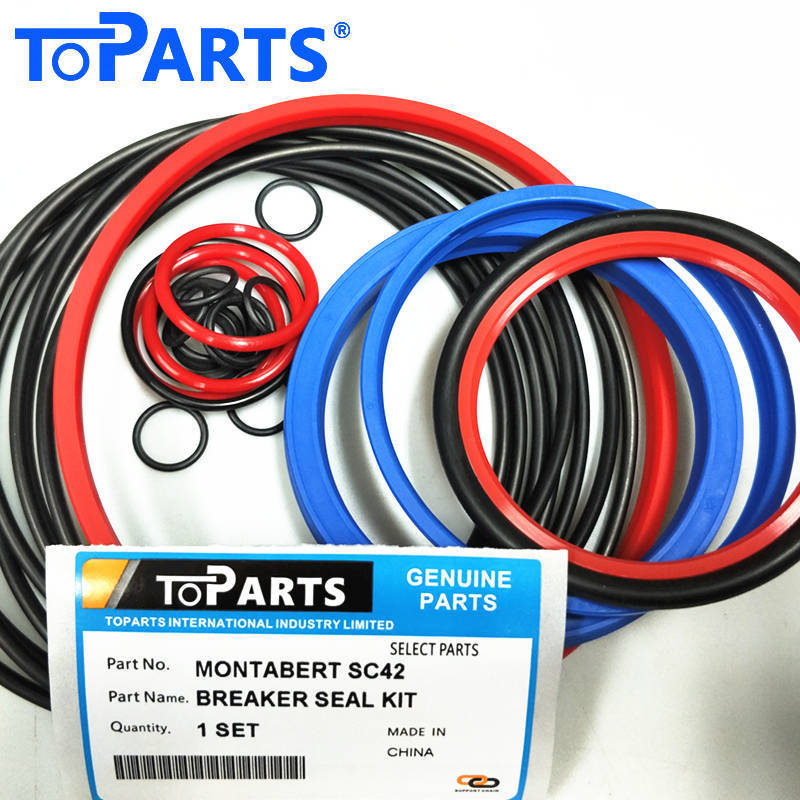

Model:Montabert SC42 Hydraulic breaker repair kit
Part Name:Hydraulic breaker Seal kit
Part Number:86675840
Position:SC42 Hydraulic cylinder
Tools:85MM
Material: TPU+NBR+PTFE
Certification: IOS 9001
Packaging Details: bag or box carton
Delivery Time: 2-5days upon payments confirmed
Brand: TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability: 500PCS
MOQ:1set
Parts list
| NO. | Quantity | Part number | product name |
| 10 | 1 | 86580966 | Plug |
| 20 | 1 | 86600632 | Valve |
| 30 | 12 | 95847927 | Screw |
| 40 | 1 | 86672755 | Upper flange |
| 50 | 1 | 86654688 | Diaphragm |
| 60 | 1 | 86665213 | Lower flange |
| 70 | 1 | 86665221 | Body |
| 80 | 10 | 86639275 | Plug |
| 90 | 10 | 86297017 | O’ring |
| 100 | 1 | 86665239 | Seal casing |
| 110 | 1 | 86656345 | Scraper seal |
| 120 | 1 | 86656337 | Seal |
| 130 | 1 | 86665247 | Cylinder |
| 140 | 1 | 86640976 | Pin |
| 150 | 1 | 86665254 | Distribution box |
| 160 | 1 | 86665262 | Distributor cover |
| 170 | 1 | 86665270 | Distributor |
| 180 | 1 | 86665288 | Piston cover |
| 190 | 1 | 86418365 | Plug |
| 200 | 1 | 86656352 | Seal |
| 210 | 1 | 86656360 | Seal |
| 220 | 8 | 86741311 | O’ring |
| 230 | 1 | 86665296 | Strike piston |
| 240 | 1 | 86665304 | Bushing |
| 250 | 1 | 86665312 | Retaining pin |
| 260 | 1 | 86655354 | Oiler |
| 270 | 2 | 95356960 | Adaptor |
| 280 | 1 | 86669561 | Plastic plug |
| 10 | 1 | 86675592 | Pressure regulator block |
| 20 | 6 | 86676970 | Screw |
| 30 | 1 | 86645918 | Lining |
| 40 | 3 | 86634649 | O’ring |
| 50 | 1 | 86670460 | Slide |
| 60 | 1 | 86605417 | Spring |
| 70 | 10 | 86719416 | Shim |
| 80 | 1 | 86645892 | Plug |
| 90 | 1 | 86309689 | O’ring |
| 100 | 2 | 86349982 | Seal |
| 110 | 2 | 86355906 | Seal |
| 120 | 2 | 86484565 | Plug |
| 10 | 1 | 86673340 | Housing |
| 20 | 1 | 86647187 | Retainer clamp |
| 30 | 1 | 86226768 | Pin |
| 40 | 1 | 86673266 | Lower dampener |
| 50 | 1 | 86673365 | Support disk |
| 60 | 1 | 86673464 | Upper dampener |
| 70 | 1 | 86646155 | Support plate |
| 80 | 1 | 86673357 | Retainer clamp |
| 90 | 3 | 86655255 | Plastic plug |
| 100 | 1 | 86676772 | Pentagonal check device |

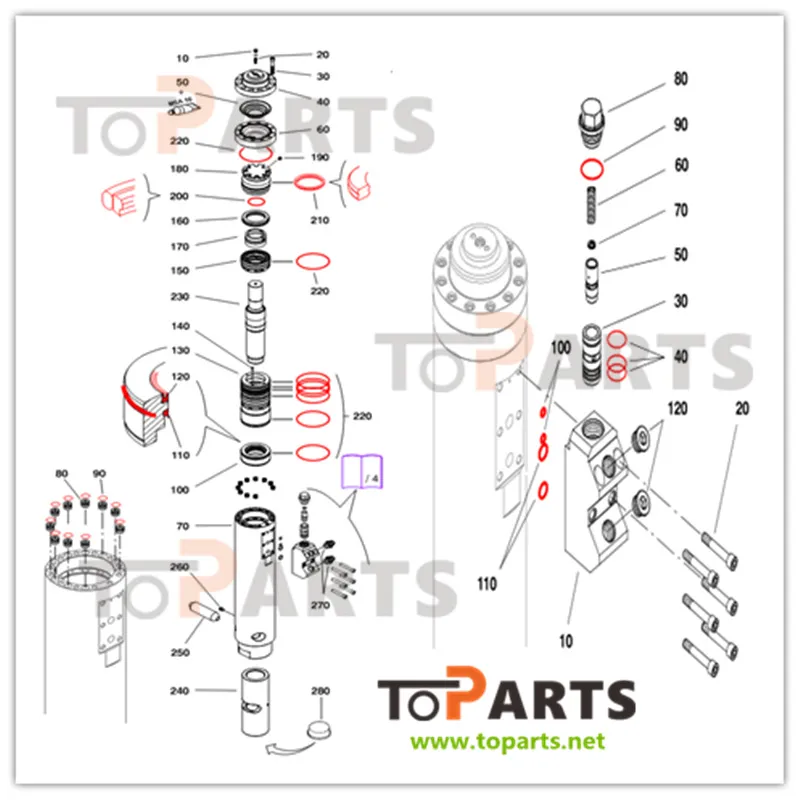

Exploded view
Our customers
Our advantage:
1. Best quality: the rubber materials is best and it have better performance.
2.Special in your market.Special package and best quality can get more customer and better profit.
3.Install Convenient: Every size have their own position, It is good for install and looks more professional.
4.long lifetime, with special skill to help seals resist oxidation, water, oil.
5.With sponge protect.The sponge can help o-rings resist oxidation ,it can keep long time.
6.Covered NOK parts
