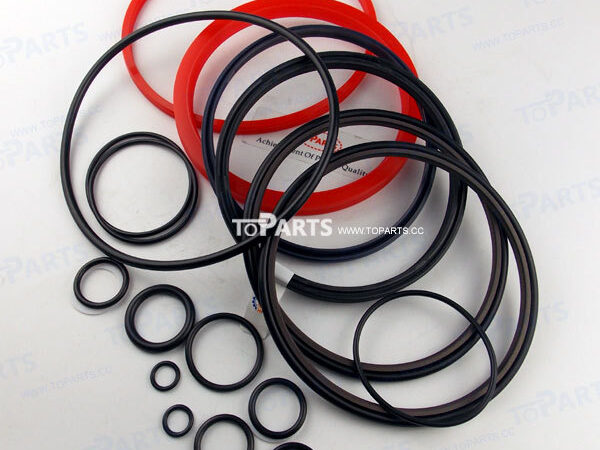

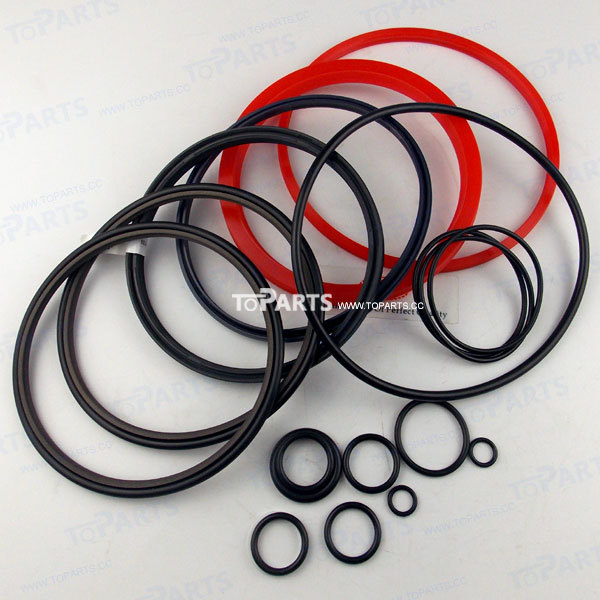

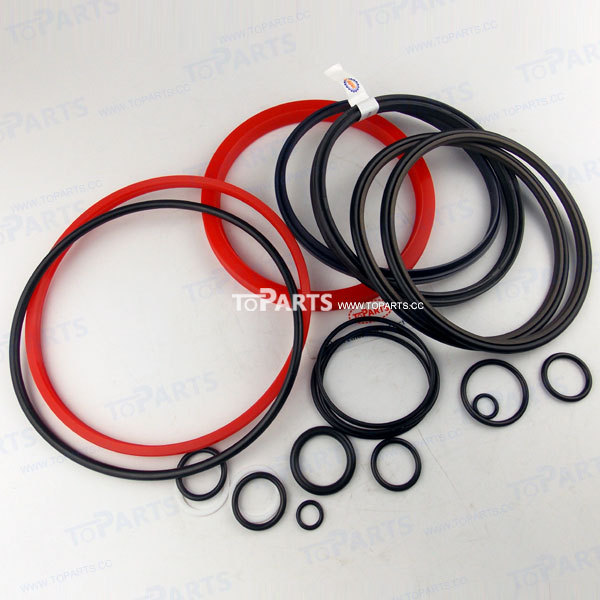

Model: Montabert XL1700 DX170 seal kit
Part Name: Hydraulic breaker Seal kit
Part Number: 86693660
Position : XL1700 DX170 Hydraulic cylinder
Tools: 137MM
Material: TPU+NBR+PTFE
Certification: IOS 9000
Packaging Details: bag or box carton
Delivery Time: 2-5days upon payments confirmed
Brand: TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability: 500PCS
Application chart

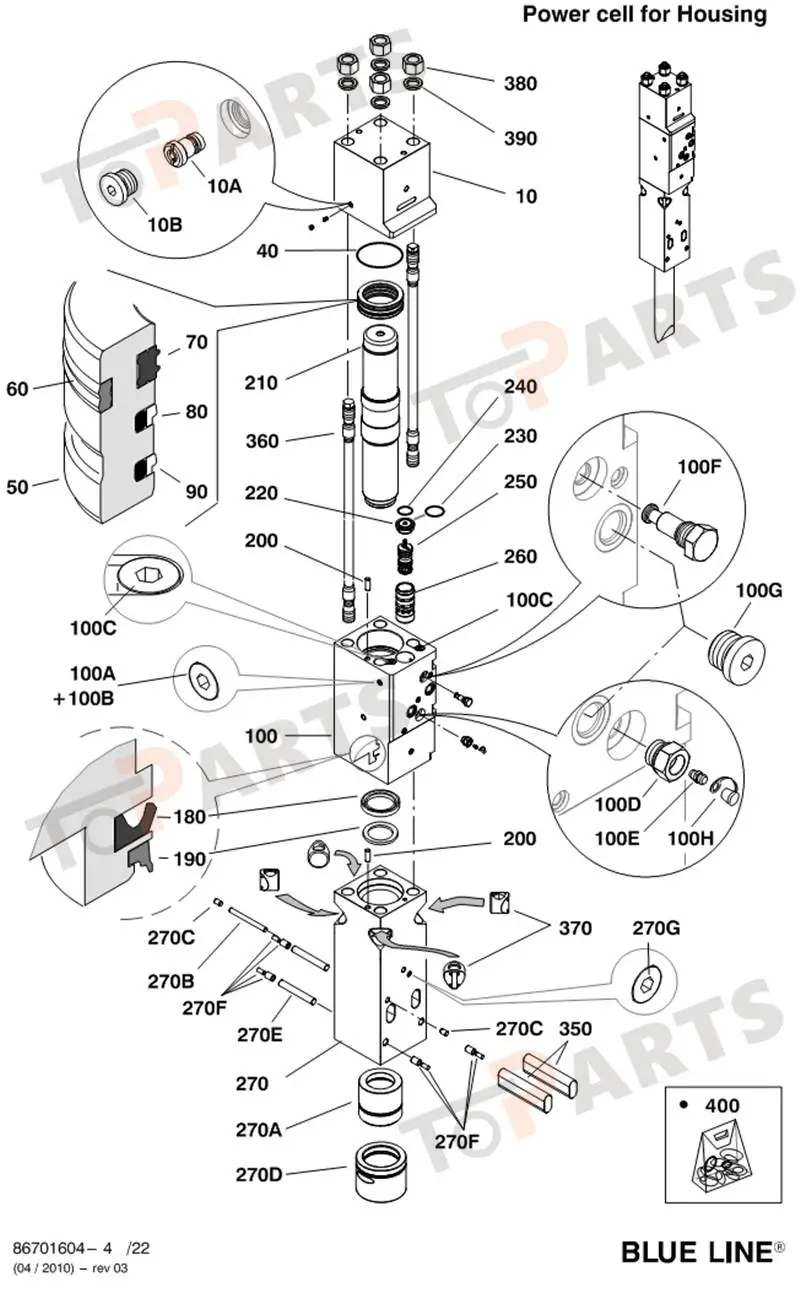

Parts list
| Item | Qty | CPN | Description |
| 10 | 1 | 86701869 | Back head includ. |
| 10A | 1 | 86600632 | (Valve |
| 10B | 1 | 86693538 | (Threaded plug |
| 40 | 1 | 86694171 | O’ring |
| 50 | 1 | 86690294 | Seals casing |
| 60 | 1 | 86690963 | Seal |
| 70 | 1 | 86690971 | Seal |
| 80 | 1 | 86657582 | Seal |
| 90 | 1 | 86696408 | Seal |
| 100 | 1 | 86701877 | Cylinder includ. |
| 100A | 10 | 86678612 | (Glued threaded plug |
| 100B | 10 | 86240389 | (Seal ring |
| 100C | 2 | 86693488 | (Glued threaded plug |
| 100D | 1 | 86691425 | (Threaded plug |
| 100E | 1 | 86655354 | (Oiler |
| 100F | 1 | 86693587 | (Threaded plug |
| 100G | 2 | 86694734 | (Threaded plug |
| 100H | 1 | 86466919 | (Oiler protection |
| 180 | 1 | 86690989 | Lip seal |
| 190 | 1 | 86690997 | Scraper seal |
| 200 | 2 | 86350014 | Pin |
| 210 | 1 | 86690302 | Strike piston |
| 220 | 1 | 86690641 | Distribution cover |
| 230 | 1 | 86694155 | O’ring |
| 240 | 1 | 86694163 | O’ring |
| 250 | 1 | 86690625 | Distributor |
| 260 | 1 | 86690633 | Distribution box |
| 270 | 1 | 86694684 | Front guide includ. |
| 270A | 1 | 86691052 | (Upper chuck bushing |
| 270B | 1 | 86691086 | (Pin |
| 270C | 2 | 86504198 | (Plastic plug |
| 270D | 1 | 86694031 | (Lower chuck bushing |
| 270E | 2 | 86691078 | (Pin |
| 270F | 4 | 86706322 | (Plastic plug |
| 270G | 1 | 86678612 | (Glued threaded plug |
| 350 | 2 | 86690310 | Retainer pin |
| 360 | 4 | 86690377 | Tie rod |
| 370 | 4 | 86603917 | Nut |
| 380 | 4 | 86690385 | Nut |
| 390 | 4 | 86708583 | Washer |
| 400 | 1 | 86693660 | Seal kit |
Our customers
Toparts seal kit for MontabertXL1700 rock breaker – Features
OEM equivalent quality,
Ultra long life seals,
Best choice of high performance polymers,
Custom molded exclusively for Toparts,
High quality packaging,
Convenient pricing,
Made in China.
TOPARTS seal kit for Montabert XL1700 rock breaker – all inclusive
All items included, like genuine OEM seals kit,
Includes high quality stainless thread inserts,
Includes ultra long life span polyurethane lip seals,
Includes high quality composite seals,
Includes high resilience steel reinforced seals,
Includes custom shaped seals,
Includes special greases for quality assembling,
Made in China.
2
Toparts high quality seal kit for Montabert XL1700 rock breaker
Toparts spare parts for Montabert XL1700 – seal kit
Toparts high quality parts for Montabert XL1700 seal kit – custom molded seals make exclusively for TOPARTS – high quality polymers – complete of all items, like genuine seal kit – high quality packaging.
Rock breaker seals are heavily solicited during the hydraulic hammer functioning:
high oil pressure,
pressure peaks,
high temperature,
piston speed reaching up to 12 meters per second,
resilience to hydraulic oils.
In order to achieve a long life span without oil leaks, Toparts seal kits are custom made for Montabert V32 rock breakers. They have very precise shape and dimensions to fit Montabert XL1700. They easily fit in place of genuine seals. Their material is highly resilient to wear, aging and high temperature. Using TOPARTS seal kit for Montabert LX1700 is the best guarantee to achieve a long life span without leaks!
TOPARTS high quality parts for Montabert XL1700 seal kit, are made in China
