Model:MSB SAGA200 Hydraulic breaker
Part Name:Hydraulic breaker seal kit, Hydraulic hammer seal kit
Tool:135MM
Part Number:A210750C
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
Certification: IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:MSBHydraulic Breaker Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
| NO | PART NO. | PART NAME | Q’TY |
| A2006A00 | HAMMER TOTAL ASS’Y | 1 | |
| A2006610 | FRONT HEAD SUB ASS’Y | 1 | |
| 101 | A2006810 | FRONT HEAD | 1 |
| 102 | A2006500 | TOOL BUSHING(BOXTYPE) | 1 |
| 103 | A2006090 | TOOL BUSHING(OPEN TYPE) | 1 |
| 104 | A2006100 | THRUST RING | 1 |
| 105 | A2006080 | UPPER BUSHING | 1 |
| 106 | A2006240 | TOOL PIN | 2 |
| 107 | A2006220 | BUSHING PIN(LOWER) | 2 |
| 108 | A2006230 | BUSHING PIN(UPPER) | 3 |
| 109 | B4006530 | SOCKET PLUG | 1 |
| 110 | B4006450 | SOCKET PLUG | 1 |
| 111 | B1306460 | RUBBER PLUG | 3 |
| 112 | B3006580 | RUBBER PLUG | 2 |
| 113 | B1006440 | SNAP RING | 3 |
| 114 | B3006570 | SNAP RING | 2 |
| 115 | B4006560 | GREASE NIPPLE | 1 |
| 116 | A2507380 | O-RING | 1 |
| A2006620 | CYLINDER SUB ASS’Y | 1 | |
| 201 | A2006750 | CYLINDER | 1 |
| 202 | A2006040 | SEAL HOUSING | 1 |
| 203 | A2006250 | CONNECTION BUSH | 2 |
| 204 | A2006260 | PLUG BUSH | 1 |
| 205 | A2006450 | SOCKET PLUG | 4 |
| 206 | A3006330 | ADJ UST BOLT 2 | 1 |
| 207 | A3006320 | ADJ UST NUT | 1 |
| 208 | A3006380 | HELI-COIL | 4 |
| 209 | A3006390 | HELI-COIL | 8 |
| 210 | A2007010 | GAS SEAL | 1 |
| 211 | A2007020 | STEP SEAL | 2 |
| 212 | A2107250 | BUFFER RING | 1 |
| 213 | A2107260 | U-PACKUNG | 1 |
| 214 | A2107270 | WIPER | 1 |
| 215 | A2007140 | O-RING | 5 |
| 216 | A2007040 | O-RING | 2 |
| 217 | A2007050 | BACKUP RING | 3 |
| 218 | A2007150 | O-RING | 4 |
| 219 | A3007170 | O-RING | 1 |
| 220 | A3007180 | BACKUP RING | 1 |
| 221 | B1807310 | O-RING | 1 |
| A2006630 | BACK HEAD SUB ASS’Y | 1 | |
| 301 | A2006740 | BACK HEAD | 1 |
| 302 | B4006910 | SOCKET PLUG | 1 |
| 303 | A3006590 | GAS CHARGING VN ASS’Y | 1 |
| 304 | A2006480 | FLANGE | 2 |
| 305 | A2706320 | ADAPTER | 2 |
| 306 | A2007140 | O-RING | 2 |
| 307 | SB1415035 | SOCKET BOLT | 8 |
| 308 | B6007330 | O-RING | 2 |
| 309 | B1807100 | O-RING | 1 |
| 310 | A2006050 | PISTON | 1 |
| 311 | A2006470 | FLANGE | 2 |
| A2006640 | VALVE BLOCK SUB ASS’Y | 1 | |
| 401 | A2006150 | VALVE BLOCK | 1 |
| 402 | A2006170 | VALVE GUIDE | 1 |
| 403 | A2006180 | VALVE SPOOL | 1 |
| 404 | A2006320 | VALVE BLOCK COVER | 1 |
| 405 | B4006520 | SOCKET PLUG | 1 |
| 406 | B4006450 | SOCKET PLUG | 2 |
| 407 | SB1615040 | SOCKET BOLT | 4 |
| 408 | A2006310 | ADJ UST BOLT1 | 1 |
| 409 | A3006320 | ADJ UST NUT | 1 |
| 410 | B4007200 | O-RING | 1 |
| 411 | B6007360 | BACKUP RING | 1 |
| 412 | B1807310 | O-RING | 1 |
| 413 | A3007160 | BACKUP RING | 1 |
| 414 | B2507190 | O-RING | 2 |
| 415 | A2007090 | BACKUP RING | 1 |
| 416 | A2007110 | O-RING | 2 |
| 417 | B1507200 | O-RING | 2 |
| A2006650 | ACCUMULATOR SUB ASS’Y | ||
| 501 | A2006061 | ACCUMULATOR COVER | 1 |
| 502 | A2006830 | ACCUMULATOR BOTTOM | 1 |
| 503 | A3006340 | ACCUMULATOR INNER VALVE | 1 |
| 504 | A3006350 | GAS CHARGING BOLT | 1 |
| 505 | A3006360 | GAS CHARGING CAP | 1 |
| 506 | A2006460 | MEMBRANE | 1 |
| 507 | A2006510 | PLUG | 1 |
| 508 | SB1815045 | SOCKET BOLT | 12 |
| 509 | A3007200 | O-RING | 1 |
| 510 | A3007130 | BACKUP RING | 1 |
| 511 | B1807310 | O-RING | 2 |
| 512 | A3007190 | O-RING | 1 |
| A2006660 | SIDE ROD SUB ASS’Y | 4 | |
| 601 | A2006110 | SIDE ROD | 4 |
| 602 | A2006130 | SIDE ROD NUT(UPPER) | 4 |
| 603 | A2006330 | SIDE ROD NUT(LOWER) | 4 |
| 604 | A2006140 | SIDE ROD WASHER | 4 |
| 701 | SB2025060 | SOCKET BOLT | 8 |
| 702 | SB2430070 | SOCKET BOLT | 4 |
| 703 | A2006280 | TOOL-CONE | 1 |
| 704 | A2006290 | TOOL-CHISEL | 1 |
| 705 | A2006300 | TOOL-BLUNT | 1 |
| 706 | A2006800 | TOOL-MOIL | 1 |
| 707 | A2006360 | GUIDE PIN | 2 |
| A210750C | SEAL KIT | 1 |
Exploded view

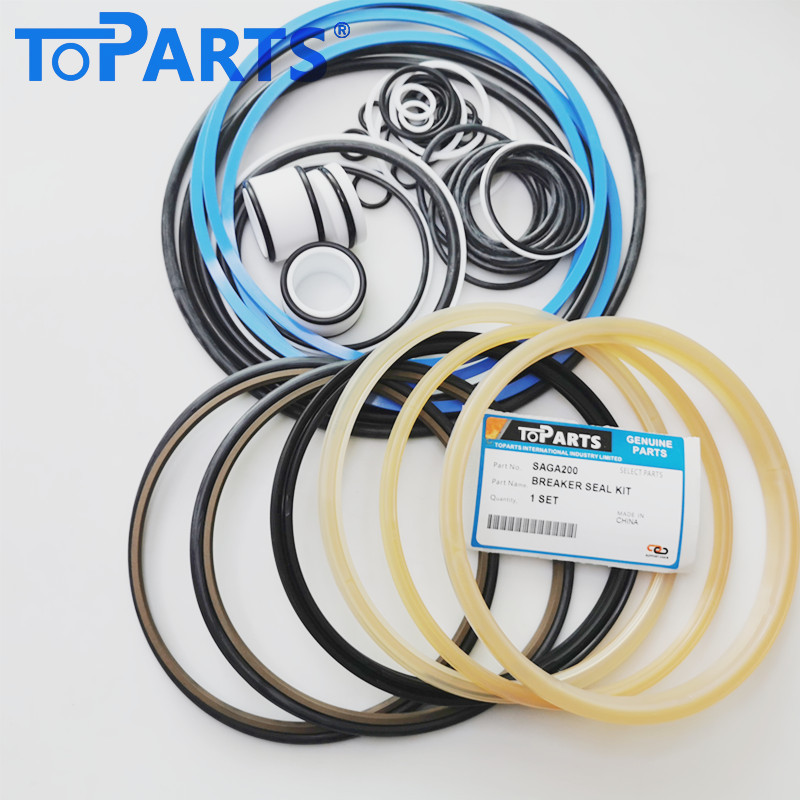

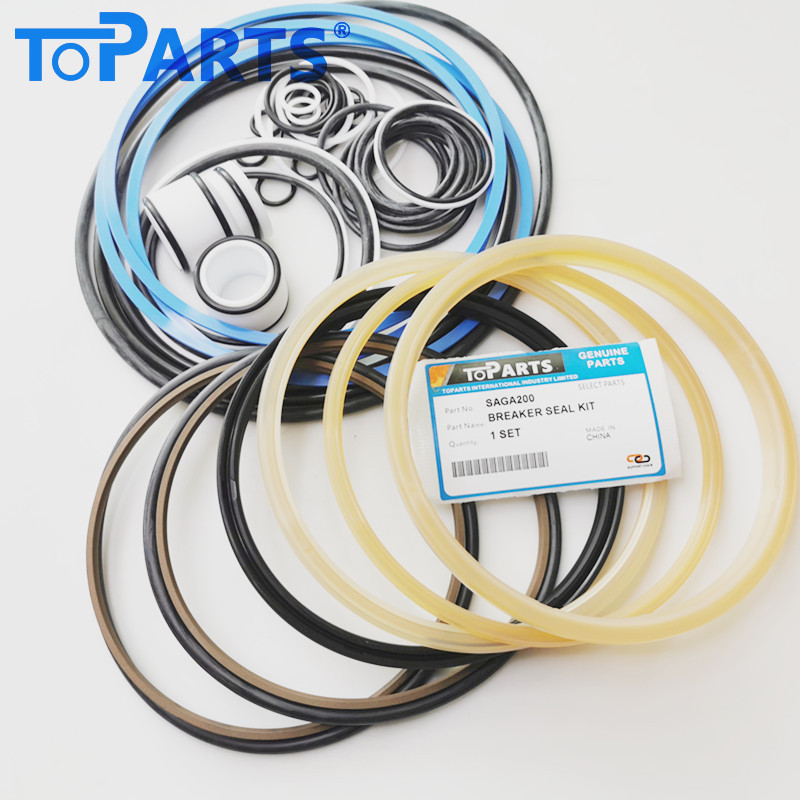

Toparts A210750C Hydraulic Breaker Seal Kit for SAGA200 Hydraulic Hammer
Restore the powerful, consistent performance of your demolition equipment with the Toparts A210750C Hydraulic Breaker Seal Kit. This high-quality service and repair kit is specifically engineered for the SAGA200 Hydraulic Hammer, ensuring maximum impact energy transfer and minimizing costly fluid loss.
Engineered for SAGA200 Performance
The SAGA200 is a robust hydraulic hammer designed for demanding breaking applications. Toparts understands that the seals must endure extreme pressure, high cycle rates, and abrasive conditions. Our A210750C seal kit is a high-precision, direct aftermarket replacement, meticulously crafted to meet or exceed OEM specifications for the SAGA200.
Key Features and Benefits:
Direct OEM Replacement: This kit is a seamless replacement for the SAGA OEM part number A210750C, guaranteeing perfect fitment and function within your SAGA200 hydraulic hammer.
Superior Material Quality: Manufactured using specialized, high-performance materials (including robust polyurethane, FKM, and NBR) that are built to withstand severe pressure spikes, high temperatures, and abrasive environmental conditions.
Restores Impact Energy: Worn seals cause internal fluid bypass, leading to a significant drop in impact force and operational efficiency. Replacing them with the Toparts A210750C kit restores your breaker’s full, rated destructive power.
Extends Hammer Life: By maintaining proper internal sealing, the kit prevents hydraulic contamination and protects critical components—such as the piston and cylinder—from premature wear.
Comprehensive Repair Solution: Provides all the necessary seals for a complete and effective hydraulic service of the breaker.
Product Details:
Part Number (Seal Kit): A210750C
Compatible Model: SAGA200 Hydraulic Hammer / Breaker
Application: Hydraulic Breaker Seal Kit / Service Repair Kit
Manufacturer: Toparts
Don’t compromise your breaking efficiency. Invest in the trusted quality and reliability of the Toparts A210750C Hydraulic Breaker Seal Kit and keep your SAGA200 operating at its powerful best.
