Model:Bobcat HB880 Hydraulic breaker

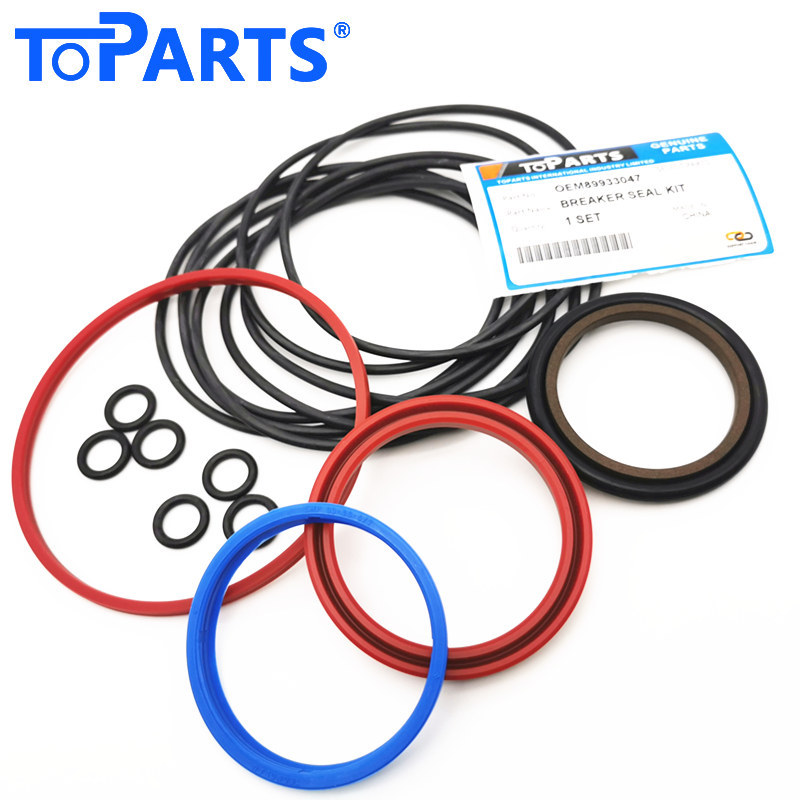

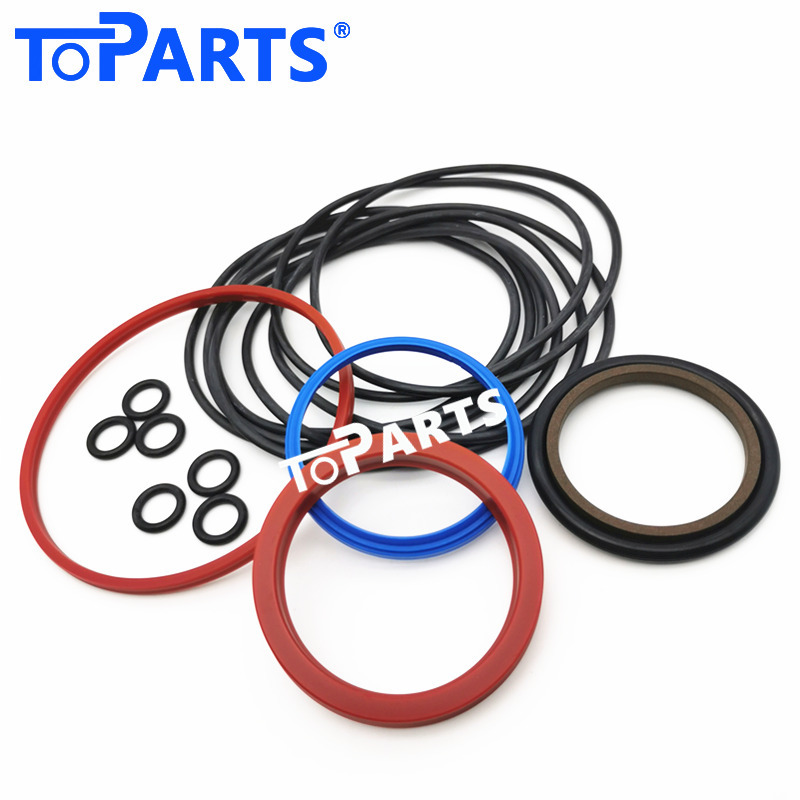

Part Name:Hydraulic breaker seal kit,Hydraulic hammer seal kit
Working tool diameter:62MM
Part Number:86633047,86638970
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
Certification: IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:Bobcat Hydraulic Breaker Systerm
Brand:TOPARTS,OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
| NO. | Part number | Part Name |
| 1 | 6676691 | PLUG |
| 2 | 6679894 | VALVE charge |
| 3 | 86626009 | BOLT |
| 4 | 86624608 | FLANGE upper |
| 5 | 86633930 | DIAPHRAGM W/Ref. 28 |
| 6 | 86624590 | FLANGE lower |
| 7 | O-RING NSS – Order Ref. 30 | |
| 8 | O-RING NSS – Order Ref. 30 | |
| 9 | 86626512 | COVER piston |
| 10 | SEAL NSS – quad ring – Order Ref. 30 | |
| 11 | SEAL NSS – rod – Order Ref. 30 | |
| 12 | 86662509 | VALVE pressure regulator – Was 86634219 – A |
| 13 | 86626504 | COVER, BREAKER HYD distributor |
| 14 | 86624699 | DISTRIBUTOR |
| 15 | 86626496 | RING, DISTRIBUTOR distributor |
| 16 | 86624749 | PISTON, BREAKER HYD |
| 17 | 86624160 | PIN |
| 18 | 86626488 | CYLINDER, BREAKER |
| 19 | SEAL NSS – lip – Order Ref. 30 | |
| 20 | SEAL NSS – scraper – Order Ref. 30 | |
| 21 | 86624632 | CARRIER seals |
| 22 | 86624624 | HOUSING |
| 23 | 6693011 | GREASE ZERK Was 6676685 – A |
| 24 | 86624764 | PIN retaining – Use W/external clamp |
| 24 | 86693744 | PIN, RETAINER retaining – Use W/internal clamp |
| 25 | 86624756 | BUSHING, BREAKER HYD |
| 26 | 86631199 | ADAPTER Not Used W/Ref. 29 |
| 27 | 79K12 | O RING 10 |
| 28 | LUBRICANT NSS | |
| 29 | VALVE, DIVERTER See Illustration BREAKER/ NA2342 – For Use on approved carriers with hydraulic flow of 23 GPM or higher | |
| 29 | VALVE, DIVERTER See Illustration BREAKER/ NA2993 – For Use on approved carriers with hydraulic flow of 23 GPM or higher | |
| 30 | 86633047 | KIT, SEAL W/Ref. 7, 8, 10, 11, 19 & 20 |
| 31 | 86638970 | KIT, REBUILD Ref. 5, 12 & 30 |
Exploded view
Our customers
Roles of Cylinder Seal
1 Preventing oil leak
The cylinder seal prevents oil leakage of a cylinder. Oil leakage through a deteriorated seal may
cause various troubles.
2 Preventing impurity intrusion
The cylinder seal prevents the intrusion of dust and moisture from the outside. Intrusion of
impurities into the hydraulic line may adversely affect other hydraulic devices including pumps,
cylinders, and motors by causing scoring, abnormal wear and other problems.
3 Maintenance of pressure
The cylinder seal maintains pressure inside a cylinder. Low pressure inside a cylinder caused by a
damaged seal lowers the front speed and digging force.
When seal deterioration or oil leakage is detected, early replacement of the seal isrecommended.
