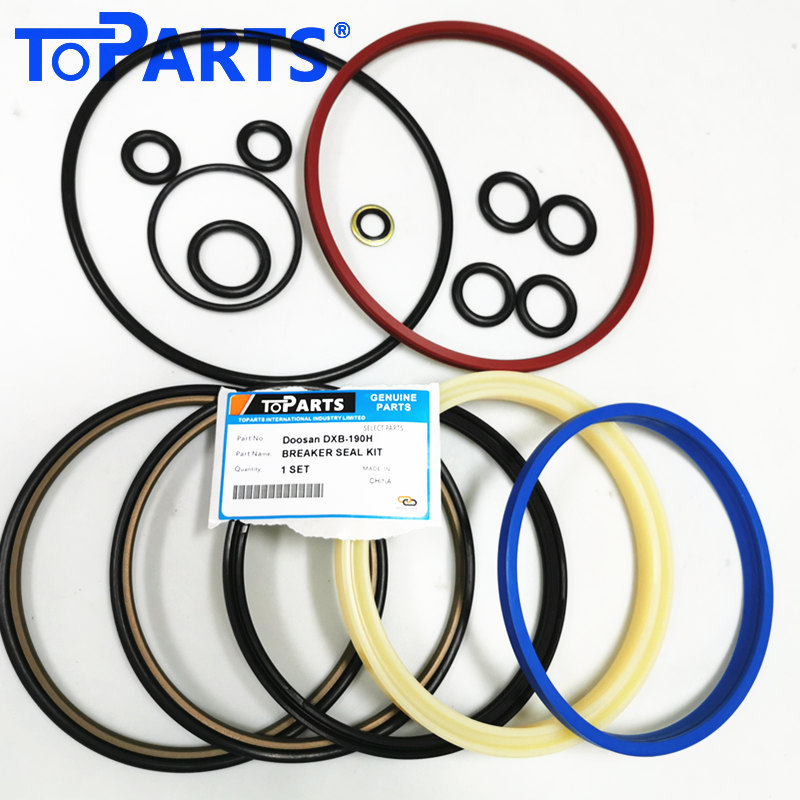

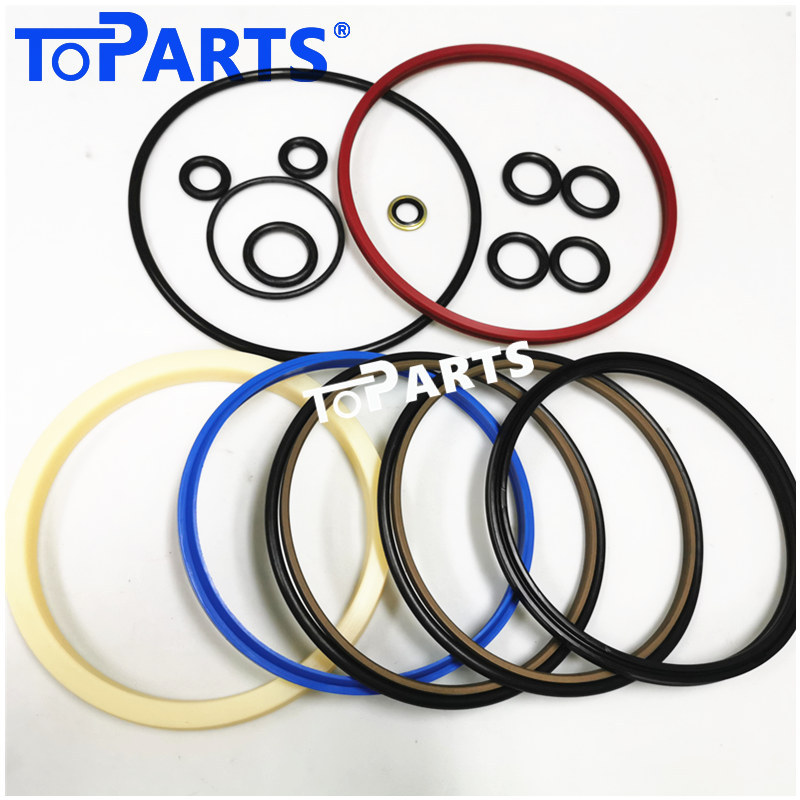

Model:Doosan DXB190 hydraulic breaker seal kit
Part Name:Hydraulic breaker Seal kit
Part Number:86714748
Position:DXB190 Hydraulic cylinder
Tools:142MM
Material:TPU+NBR+PTFE
Certification:IOS 9001
Packaging Details:bag or box carton
Delivery Time:2-5days upon payments confirmed
Brand:TOPARTS, OEM or as Required
Payment Terms:TT/Paypal/WEST UNION
Supply Ability:500PCS
MOQ:1set
Parts list
| Item | Qty | CPN | Description |
| 10 | 1 | 86712767 | Back head includ. |
| 10A | 1 | 86600632 | (Valve |
| 10B | 1 | 86693538 | (Threaded plug |
| 10C | 1 | 86694171 | (O’ring |
| 20 | 1 | 86714193 | Seals casing |
| 30 | 1 | 86706371 | Seal |
| 40 | 1 | 86706405 | Seal |
| 50 | 1 | 86706389 | Seal |
| 60 | 1 | 86706397 | Seal |
| 70 | 1 | 86712775 | Cylinder includ. |
| 70A | 11 | 86678612 | (Glued threaded plug |
| 70B | 11 | 86240389 | (Seal ring |
| 70C | 1 | 86704376 | (Glued threaded plug |
| 70D | 3 | 86693488 | (Glued threaded plug |
| 70E | 1 | 86691425 | (Threaded plug |
| 70F | 1 | 86655354 | (Oiler |
| 70G | 1 | 86693587 | (Threaded plug |
| 70H | 2 | 86694734 | (Threaded plug |
| 70I | 1 | 86466919 | (Oiler protection |
| 70J | 1 | 86240389 | (Seal ring |
| 70K | 1 | 86696952 | (Special screw |
| 70L | 1 | 86696960 | (Nut |
| 110 | 1 | 86718103 | Lip seal |
| 120 | 1 | 86724754 | Scraper seal |
| 130 | 2 | 86715570 | Pin |
| 140 | 1 | 86714185 | Strike piston |
| 150 | 1 | 86690641 | Distribution cover |
| 155 | x | 86726601 | Shim |
| 160 | 1 | 86694155 | O’ring |
| 170 | 1 | 86694163 | O’ring |
| 180 | 1 | 86690625 | Distributor |
| 190 | 1 | 86690633 | Distribution box |
| 200 | 1 | 86712783 | Front guide includ. |
| 200A | 1 | 86697232 | (Upper chuck bushing |
| 200B | 1 | 86718061 | (Pin including |
| 200C | 2 | 86737103 | *O’ring |
| 200D | 1 | 86697240 | (Lower chuck bushing |
| 200E | 2 | 86718053 | (Pin including |
| 200F | 4 | 86737111 | *O’ring |
| 200G | 2 | 86678612 | (Glued threaded plug |
| 200H | 1 | 86240389 | (Seal ring |
| 210 | 2 | 86697224 | Retainer pin |
| 220 | 4 | 86697307 | Tie rod |
| 230 | 4 | 86603917 | Nut |
| 240 | 4 | 86690385 | Nut |
| 250 | 4 | 86708583 | Washer |
| 260 | 1 | 86714748 | seal kit |

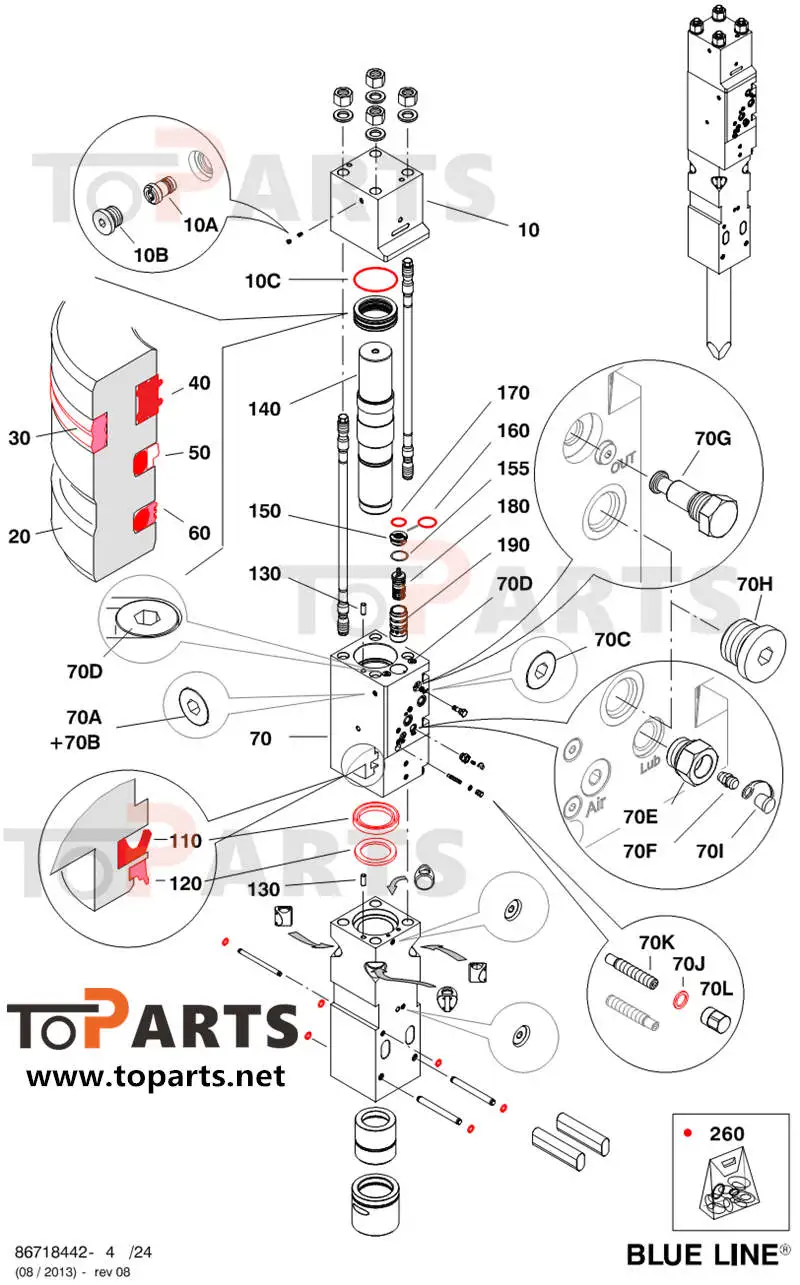

Exploded view
Our customers
Our advantage:
1. Best quality: the rubber materials is best and it have better performance.
2.Special in your market.Special package and best quality can get more customer and better profit.
3.Install Convenient: Every size have their own position, It is good for install and looks more professional.
4.long lifetime, with special skill to help seals resist oxidation, water, oil.
5.With sponge protect.The sponge can help o-rings resist oxidation ,it can keep long time.
6.Covered NOK parts
