Model:Furukawa Fxj475 hydraulic breaker
Part Name: Hydraulic breaker seal kit, Hydraulic hammer seal kit
Part Number: 902409-920050 (A),902409-920060 (B),902409-920070(C),902409-920080(D),902407-920090(E)
Tool:170MM
Certification:IOS 9001
Packaging Details: bag or box +carton
Material: TPU+HNBR+PTFE
Delivery Time: 2-5days upon payments confirmed
Position :FURUKAWA Hydraulic Breaker Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability:500
Parts list
| ITEM | PART NO. | PART NAME | Q’TY |
| 101 | 002409-100010 | CYLINDER | 1 |
| A01 | * | CYLINDER | 1 |
| A02 | FXJ475-10105 | HELI-COIL INSERT | 8 |
| A03 | FXJ475-10104 | HELI-COIL INSERT | 4 |
| A04 | 002409-900010 | HELI-COIL INSERT | 4 |
| 102 | 002409-100030 | CYLINDER LINER | 1 |
| 103 | 002409-100040 | U-PACKING | 1 |
| 104 | 002409-100050 | BUFFER RING | 1 |
| 105 | 002409-100060 | SCRAPER | 1 |
| 106 | 002409-100070 | DUAL SEAL | 8 |
| 107 | 002409-100080 | DISTANCE WASHER | 1 |
| 108 | 002409-100090 | SEAL RETAINER | 1 |
| 109 | 002409-100100 | GLIDE RING | 1 |
| 110 | 002409-100110 | STEP SEAL | 1 |
| 111 | 002409-100120 | GLIDE RING | 1 |
| 112 | FXJ47510120 | PLUG | 1 |
| 113 | 160011-00040 | O-RING | 3 |
| 114 | 160011-00018 | O-RING | 2 |
| 115 | 084891-06000 | PLUG | 1 |
| 116 | 160011-00024 | O-RING | 1 |
| 117 | 084891-02000 | PLUG | 8 |
| 118 | 160011-00011 | O-RING | 8 |
| 119 | 084891-03000 | PLUG | 6 |
| 120 | 160011-00014 | O-RING | 6 |
| 121 | 084891-04000 | PLUG | 2 |
| 122 | 002409-100130 | FRONT HOLDER | 1 |
| 123 | 002409-100140 | FRONT BUSH | 1 |
| 124 | 002409-100150 | STOP PIN | 4 |
| 125 | 002407-100110 | A-PLUG | 4 |
| 126 | 002409-100160 | ROD PIN | 2 |
| 127 | 001300-20118 | KNOCK PIN | 1 |
| 128 | FXJ475-10121 | BUSH | 1 |
| 129 | 160011-00029 | O-RING | 2 |
| 130 | FXJ475-10121 | BUSH | 1 |
| 151 | 002409-110010 | PISTON | 1 |
| 181 | FXJ475-20121 | CHECK VALVE | 1 |
| 182 | 002407-120010 | PORT BLOCK | 1 |
| 183 | 000500-220110 | SPRING WASHER | 6 |
| 184 | 102032-14045 | SOCKET BOLT | 6 |
| 185b | 084869-06000 | MALE CONNECTOR | 1 |
| B01 | 160011-00024 | *O-RING | 1 |
| 186 | FXJ475-30113 | CAP | 1 |
| 187 | 084891-02000 | GPF PLUG | 2 |
| 188 | 160011-00011 | O-RING | 2 |
| 189 | 166152-02000 | HOLLOW PLUG | 1 |
| 381 | 002409-250010 | MOIL POINT ROD | 1 |
| 381 | 002409-250020 | FLAT ROD | 1 |
| 381 | 002409-250030 | WEDGE POINT ROD | 1 |
| 381 | 002409-250040 | BALL POINT ROD | 1 |
| 401 | 002409-300020 | BACK HEAD | 1 |
| 402 | FXJ475-30103 | CHARGING VALVE | 1 |
| 403 | FXJ475-30109 | PLUG | 1 |
| 404 | 160011-00006 | O-RING | 1 |
| 405 | 160011-00018 | O-RING | 1 |
| 406 | 002409-100070 | DUAL SEAL | 1 |
| 407 | 084891-10000 | PLUG | 2 |
| 408 | 160011-00029 | O-RING | 2 |
| 409 | 084891-12000 | PLUG | 2 |
| 410 | 160011-00038 | O-RING | 2 |
| 411 | 002409-130040 | CONNECTOR | 2 |
| 412 | 161011-00044 | O-RING | 2 |
| 413 | FXJ475-30114 | STICKER | -2 |
| 451 | 002409-360010 | BOLT | 4 |
| 452 | 002409-360020 | WASHER | 4 |
| 902409-920050 | SEAL KIT (A) (R1) | ||
| 902409-920060 | SEAL KIT (B) (R2) | ||

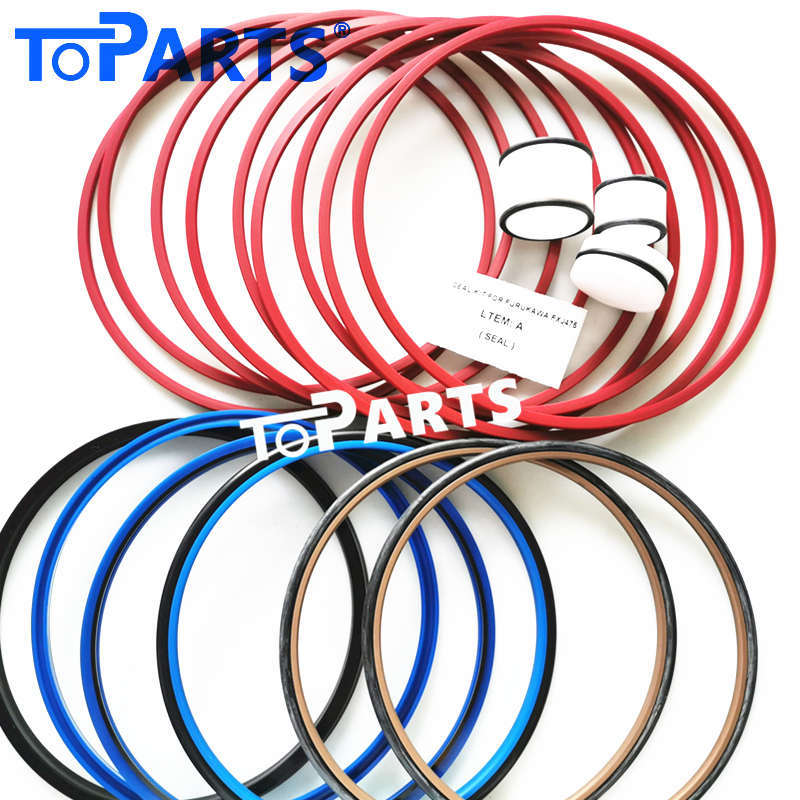

| 902409-920050 | SEAL KIT (A) | ||
| 851 | 002409-100040 | *U-PACKING | 1 |
| 852 | 002409-100050 | *BUFFER RING | 1 |
| 853 | 002409-100060 | *SCRAPER | 1 |
| 854 | 002409-100070 | *DUAL SEAL | 9 |
| 855 | 002409-100100 | *GLIDE RING | 1 |
| 856 | 002409-100110 | *STEP SEAL | 1 |
| 857 | 002409-100120 | *GLIDE RING | 1 |
| 858 | FXJ475-10120 | *PLUG | 1 |
| 859 | 160011-00040 | *O-RING | 3 |
| 860 | 160011-00029 | *O-RING | 2 |
| 861 | FXJ475-10121 | *BUSH | 1 |
| 862 | FXJ475-10121 | *BUSH | 1 |
| 902409-920060 | SEAL KIT (B) | ||
| 851 | 160011-00018 | *O-RING | 3 |
| 852 | 160011-00024 | *O-RING | 2 |
| 853 | 160011-00011 | *O-RING | 10 |
| 854 | 160011-00014 | *O-RING | 6 |
| 855 | 002407-100110 | *A-PLUG | 4 |
| 856 | 160011-00006 | *O-RING | 1 |
| 857 | 160011-00029 | *O-RING | 2 |
| 858 | 160011-00038 | *O-RING | 2 |
| 859 | 161011-00044 | *O-RING | 2 |
| FXJ475-70001 | ACCUMULATOR ASSEMBLY | ||
| 501 | FXJ475-70101 | *ACCUMULATOR COVER | 1 |
| 502 | FXJ475-70102 | *ACCUMULATOR BODY | 1 |
| 503 | FXJ475-70111 | *DIAPHRAGM | 1 |
| 504 | FXJ475-70219 | *FACE SEAL | 1 |
| 505 | 102033-20060 | *SOCKET BOLT | 16 |
| 506 | FXJ475-70115 | *SOCKET BOLT | 4 |
| 507 | 007120-70134 | *VALVE | 1 |
| 508 | 007010-70029 | *CAP | 1 |
| 509 | 007010-70030 | *PLUG | 1 |
| 510 | 160011-00005 | *O-RING | 1 |
| 511 | 160011-00014 | *O-RING | 2 |

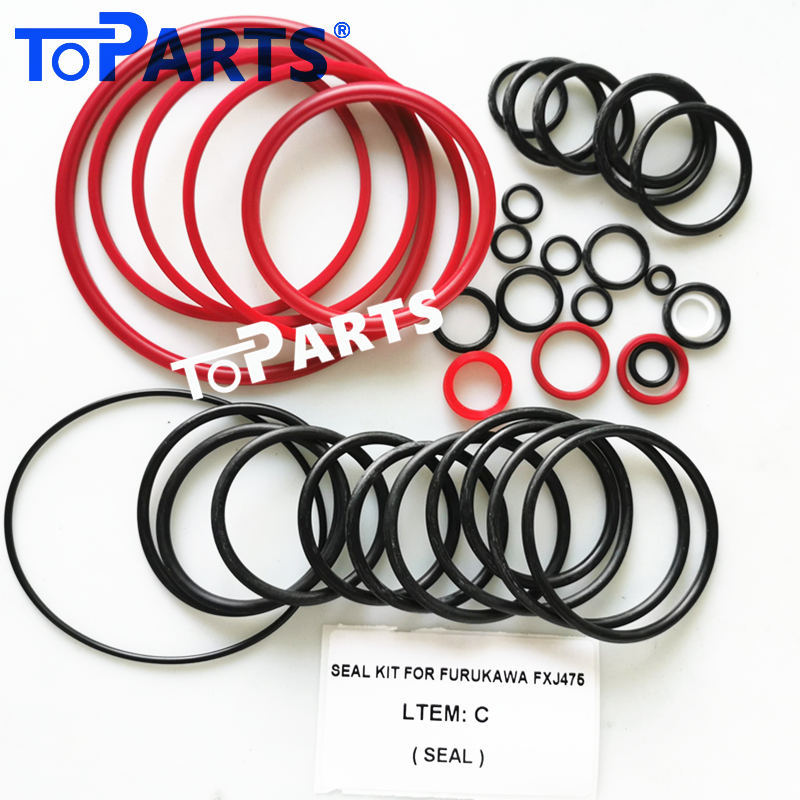

| 902409-920070 | SEAL KIT (C) (R3) |

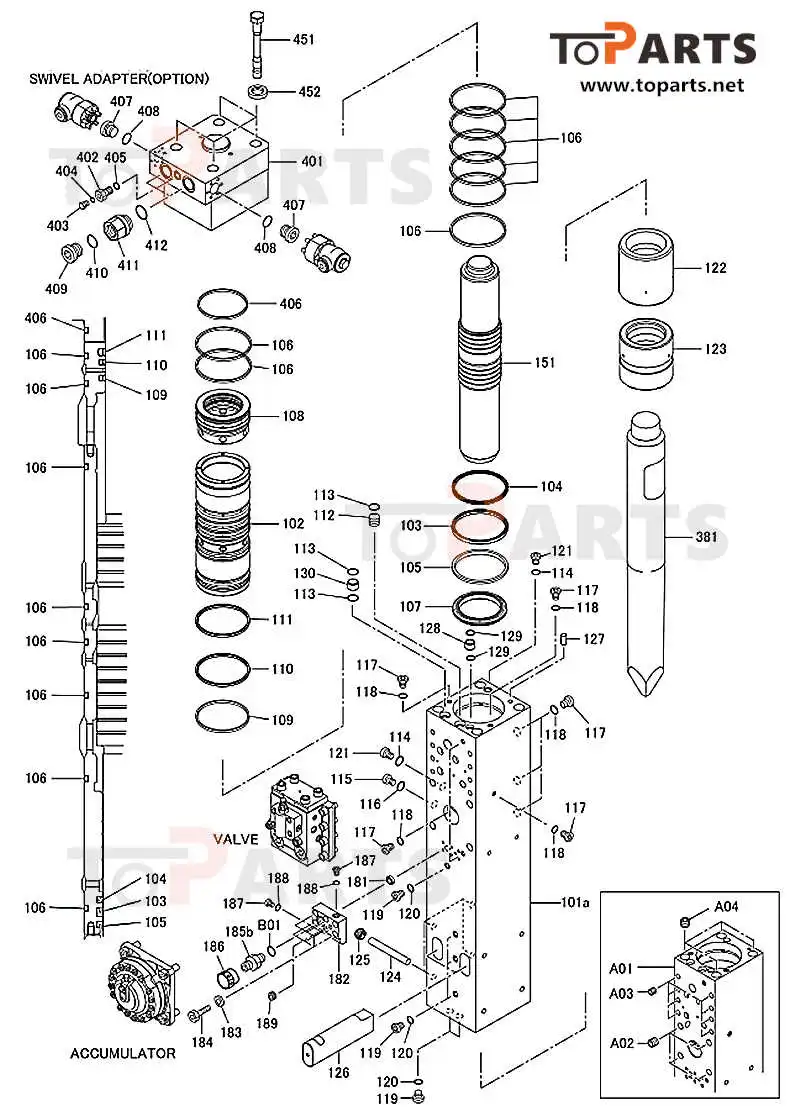

Exploded view
Our customers
Our advantage:
1. Best quality: the rubber materials is best and it have better performance.
2.Special in your market.Special package and best quality can get more customer and better profit.
3.Install Convenient: Every size have their own position, It is good for install and looks more professional.
4.long lifetime, with special skill to help seals resist oxidation, water, oil.
5.With sponge protect.The sponge can help o-rings resist oxidation ,it can keep long time.
6.Covered NOK parts
Serviceable hammer brands: Furukawa, Soosan, Atlas-Copco, Daemo, Komac, Komatsu, Everdigm, Krupp, NPK, MSB, Sandvik, Toku, Toyo, Montabert, D&A, Rammer, General, etc Hydraulic breaker seal kit.
