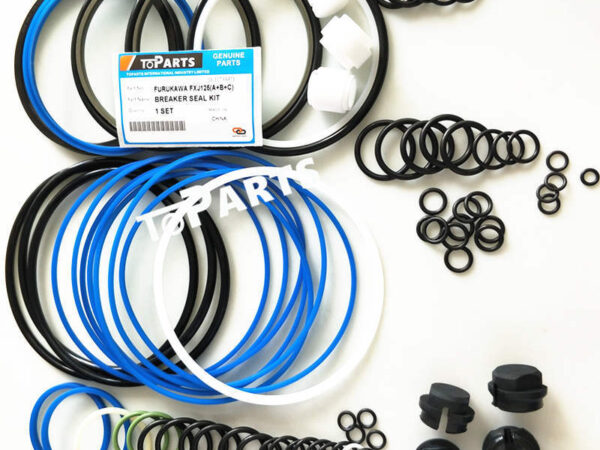

Model:Furukawa Fxj125 hydraulic breaker
Part Name: Hydraulic breaker seal kit, Hydraulic hammer seal kit
Part Number:902204-920020 (A),902204-920030 (B),902204-920040(C)
Tool:110MM
Certification:IOS 9001
Packaging Details: bag or box +carton
Material: TPU+HNBR+PTFE
Delivery Time: 2-5days upon payments confirmed
Position :FURUKAWA Hydraulic Breaker Systerm
Brand:TOPARTS, OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability:500
MOQ:1set
Parts list
| ITEM | PART NO. | PART NAME | Q’TY |
| 101a | 002204-100010 | CYLINDER | 1 |
| A01 | * | *CYLINDER | 1 |
| A02 | HB20G-10105 | *HELICOIL INSERT | 6 |
| A03 | 002204-900010 | *HELICOIL INSERT | 4 |
| 102 | 002204-100030 | CYLINDER LINER | 1 |
| 103 | 002204-100040 | PACKING | 1 |
| 104 | 002201-100070 | SCRAPER | 1 |
| 105 | 002204-100050 | DUAL SEAL | 7 |
| 106 | 002204-100090 | DISTANCE WASHER | 1 |
| 107 | 002204-100100 | SEAL RETAINER | 1 |
| 108 | 002204-100060 | GLIDE RING | 1 |
| 109 | 002204-100070 | STEP SEAL | 1 |
| 110 | 002204-100080 | GLIDE RING | 1 |
| 111 | 161011-00130 | O-RING | 2 |
| 112 | 262031-00130 | BACK-UP RING | 1 |
| 113 | 002301-100060 | PLUG | 1 |
| 114 | 160011-00018 | O-RING | 1 |
| 115 | F4-10121 | BUSH | 1 |
| 116 | 160011-00020 | O-RING | 2 |
| 117 | HB10G-10121 | BUSH | 1 |
| 118 | 160011-00024 | O-RING | 3 |
| 119 | 084891-01000 | PLUG | 4 |
| 120 | 160011-00008 | O-RING | 4 |
| 121 | 084891-02000 | PLUG | 10 |
| 122 | 160011-00011 | O-RING | 10 |
| 123 | 084891-03000 | PLUG | 2 |
| 124 | 160011-00014 | O-RING | 2 |
| 125 | 084891-04000 | PLUG | 1 |
| 126 | 084891-06000 | PLUG | 1 |
| 127 | 002204-100110 | FRONT HOLDER | 1 |
| 128 | 002204-100120 | FRONT COVER | 1 |
| 129 | 002204-100130 | STOP PIN | 2 |
| 130 | 002203-100140 | STOP PIN | 2 |
| 131 | 002407-100110 | A-PLUG | 4 |
| 132 | 002204-100140 | ROD PIN | 2 |
| 133 | F22-10125 | KNOCK PIN | 3 |
| 134 | 001100-20123 | GREASE NIPPLE | 1 |
| 135 | 166152-02000 | PLUG | 1 |
| 136 | 002204-100150 | ARMOUR PLATE | 1 |
| 137 | 102032-20040 | SOCKET BOLT | 4 |
| 151 | 002204-110010 | PISTON | 1 |
| 381 | 002204-250010 | MOIL POINT ROD | 1 |
| 381 | 002204-250020 | FLAT ROD | 1 |
| 381 | 002204-250030 | WEDGE POINT ROD | 1 |
| 381 | 002204-250040 | BALL POINT ROD | 1 |
| 401 | 002204-300010 | BACK HEAD | 1 |
| 402 | HB15G-30103 | CHARGING VALVE | 1 |
| 403 | HB20G-30109 | PLUG | 1 |
| 404 | 160011-00006 | O-RING | 1 |
| 405 | 160011-00018 | O-RING | 1 |
| 406 | 161011-00130 | O-RING | 1 |
| 407 | 084891-10000 | PLUG | 2 |
| 408 | 161011-00029 | O-RING | 2 |
| 451 | 002204-360010 | BOLT | 4 |
| 452 | 002204-360020 | WASHER | 4 |
| 902204-920020 | SEAL KIT (A) (R1) | SEE PAGE 02-01 | |
| 902204-920030 | SEAL KIT (B) (R2) | SEE PAGE 03-01 |

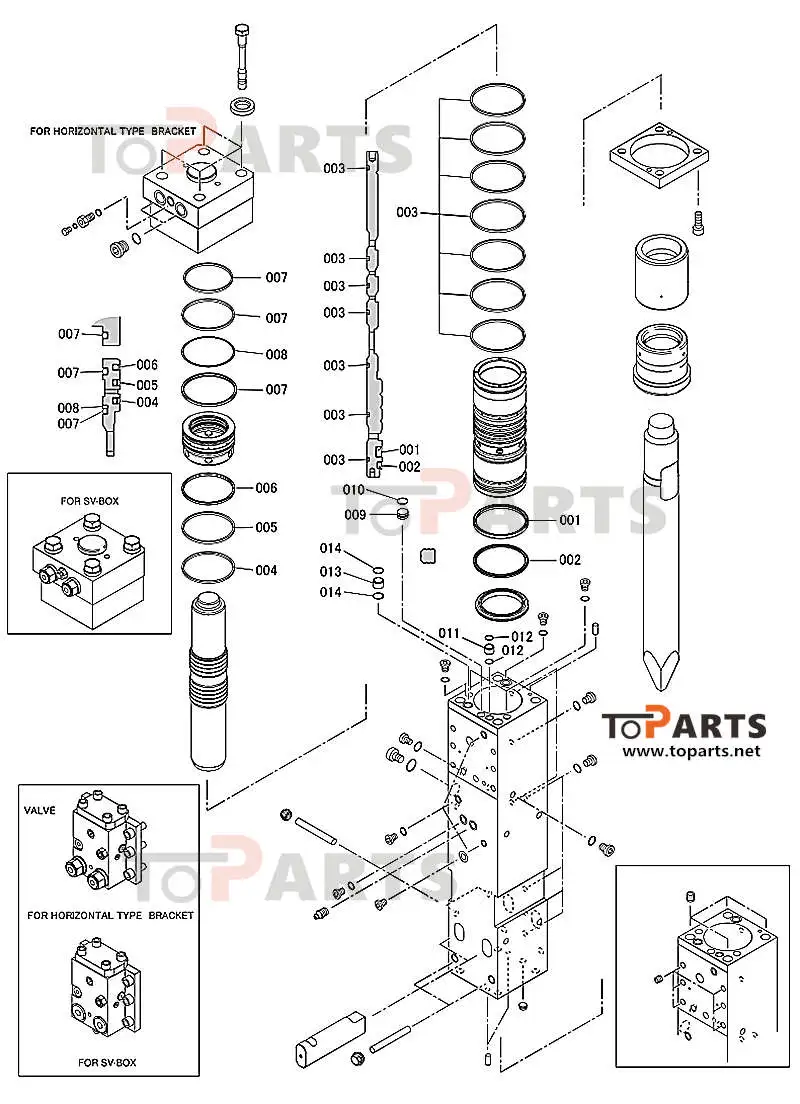

Exploded view
Our customers
Our advantage:
1. Best quality: the rubber materials is best and it have better performance.
2.Special in your market.Special package and best quality can get more customer and better profit.
3.Install Convenient: Every size have their own position, It is good for install and looks more professional.
4.long lifetime, with special skill to help seals resist oxidation, water, oil.
5.With sponge protect.The sponge can help o-rings resist oxidation ,it can keep long time.
6.Covered NOK parts
Serviceable hammer brands: Furukawa, Soosan, Atlas-Copco, Daemo, Komac, Komatsu, Everdigm, Krupp, NPK, MSB, Sandvik, Toku, Toyo, Montabert, D&A, Rammer, General, etc Hydraulic breaker seal kit.
