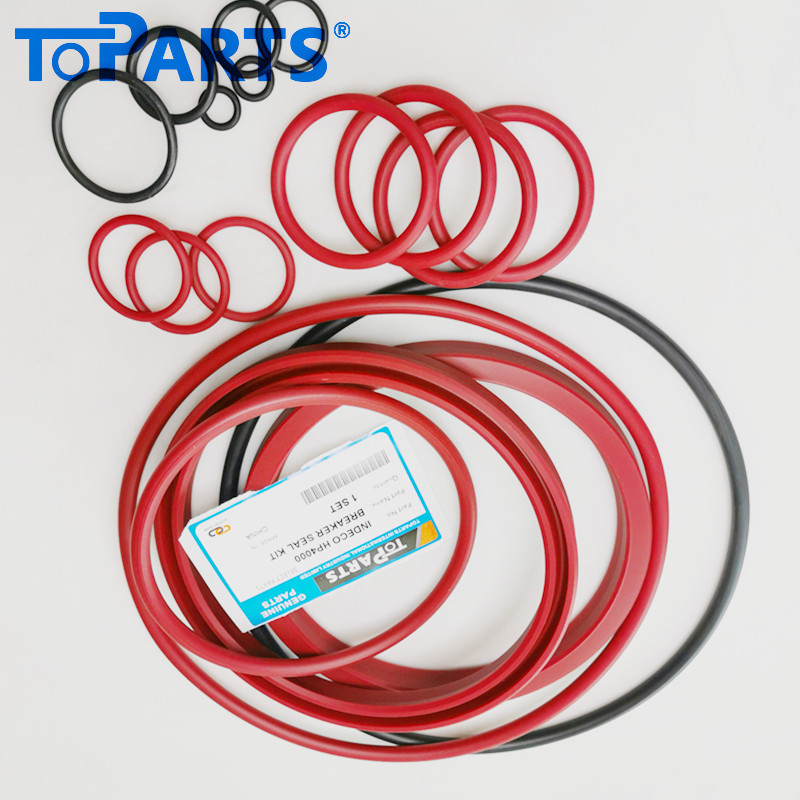

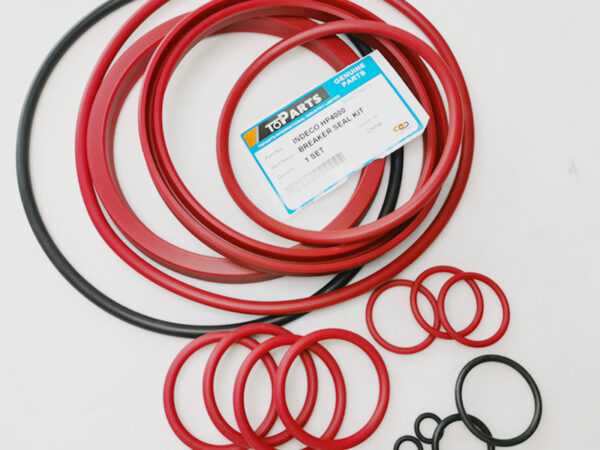

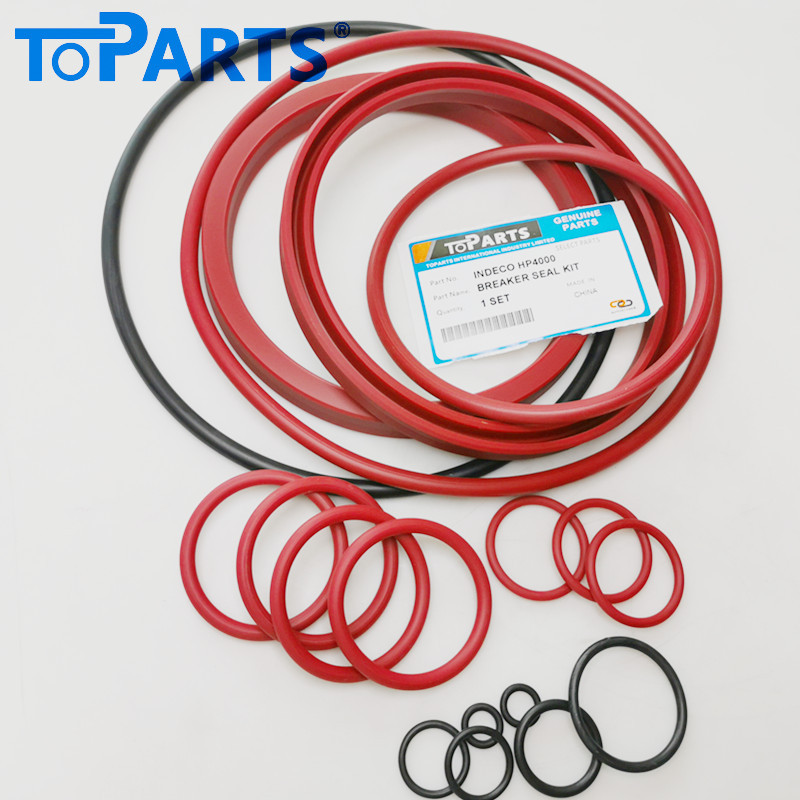

Model:Indeco HP4000 MES4000 Hydraulic breaker
Part Name:Hydraulic breaker seal kit, Hydraulic hammer seal kit
Tool:150MM
Part Number:HP04000 8000K
Material:TPU+HNBR+PTFE
Packaging Details: bag or box +carton
Certification: IOS 9001
Delivery Time: 2-5days upon payments confirmed
Position:INDECO Hydraulic Breaker Systerm
Brand:TOPARTS, BULLDOG OEM or as Required
Payment Terms: TT/Paypal/WEST UNION
Supply Ability: 100
MOQ:1set
Parts list
| POS | QTY | INA Part | Description |
| 101 | 1 | HP04000 1010A | CHUCK HOUSING – ASSEMBLY |
| 103 | 1 | 330202 | INSERT BUSH PIN |
| 104 | 1 | HP04000 1040 | UPPER BUSH |
| 105 | 1 | HP04000 1050 | SPACER |
| 106 | 1 | HP04000 1060 | SPACER RING |
| 108 | 2 | HP04000 1080 | RETAINING AXLE |
| 109a | 2 | HP04000 1090 | LOCK BOLT – PUSH AND TURN |
| 109b | 2 | HP04000 1095 | LOCK BOLT – SOLID |
| 110 | 2 | 330121 | ELASTIC PIN |
| 111 | 2 | 8501110 | SPRING |
| 112 | 2 | 2701201 | NYLON PLUG |
| 113 | 2 | 100381 | O-RING |
| 116 | 1 | 330221 | ELASTIC PIN |
| 121 | 1 | 3501210 | SEAT |
| 122 | 1 | 3501220 | PLATE |
| 123 | 1 | 3501230 | FLANGE |
| 152 | 1 | HP04000 1520 | INSERT HOLDER |
| 153a | 1 | HP04000 1538 | INSERT BUSH – STEEL |
| 153b | 1 | HP04000 1537 | INSERT BUSH – BRONZE |
| 153c | 1 | HP04000 1530 | INSERT BUSH – PLASTIC |
| 154 | 1 | HP04000 1540 | CIRCLIP |
| 201 | 1 | HP04000 2010 | CYLINDER |
| 203 | 1 | 100401 | O-RING |
| 204 | 2 | 110101 | SEAL – U JOINT |
| 205 | 5 | HP04000 2050 | CHECK VALVE |
| 206 | 1 | 270011 | GREASE NIPPLE |
| 207 | 1 | 2202070 | GREASING PIN |
| 207A | 1 | 110201 | U CUP |
| 208 | 1 | HP04000 2080 | PISTON (UPPER) |
| 209 | 1 | HP04000 2095 | PISTON (LOWER) |
| 209A | – | HP04000 2090A | PISTON (ASSEMBLY) |
| 210 | 1 | HP04000 2100 | GUIDE ADAPTER |
| 211 | 1 | 340011 | PIN |
| 301 | 1 | HP04000 3010 | HEAD |
| 302 | 1 | HP04000 3020 | DISTRIBUTOR BOX BODY |
| 303 | 1 | 100402 | O-RING |
| 304 | 1 | HP04000 3040 | DISTRIBUTOR |
| 305 | 1 | HP04000 3050 | BOX BODY COVER |
| 305a | 1 | HP04000 3050A | COVER ASSEMBLY |
| 306 | 1 | HP04000 3060 | STEEL DIAPHRAGM |
| 307 | 4 | HP04000 3071 | SIDE ROD |
| 308 | 4 | HP04000 3081 | SIDE ROD NUT |
| 310 | 1 | 340161 | PIN |
| 313 | 4 | 2701261 | RUBBER STOP |
| 314 | 4 | 1703140 | SIDE ROD LOCK |
| 401 | 2 | 2004010 | LINK |
| 402 | 2 | 120011 | SEALING WASHER |
| 403 | 2 | 200011 | PLUG 1/4″ GAS |
| 404 | 1 | 2707142 | HP CONNECTION |
| 405 | 1 | 2707152 | LP CONNECTION |
| 406 | 4 | 100052 | O-RING |
| 407 | 2 | 2707192 | WASHER |
| 408 | 2 | 350011 | SEEGER |
| 409 | 8 | 300011 | BOLT |
| 410 | 2 | 100062 | O-RING |
| 411 | 1 | 2004112 | BARREL |
| 412 | 1 | 100222 | O-RING |
| 413 | 1 | 2004130C | SLIDE |
| 414 | 1 | 400041 | SPRING |
| 415 | 7 | 360021 | ADJUSTMENT SHIM |
| 416 | 1 | 100061 | O-RING |
| 418 | 1 | 2004180 | GUIDING PLUG |
| 419 | 1 | 2004190 | SPACING DISK |
| 420 | 2 | 360061 | ADJUSTMENT SHIM |
| 431 | 1 | 3504315 | VALVE BODY |
| 432 | 1 | 3504325 | NEEDLE |
| 434 | 1 | 400061 | SPRING |
| 435 | 1 | 340111 | SPACER BARREL |
| 436 | 1 | 100171 | O-RING |
| 437 | 7 | 360021 | ADJUSTMENT SHIM |
| 438 | 1 | 3504380 | PLUG |
| 501 | 1 | HP04000 5010 | ACC. SHELL-LOWER HALF |
| 502 | 1 | HP04000 5020 | ACC. SHELL-UPPER HALF |
| 503 | 1 | HP04000 5030P | DIAPHRAGM |
| 504 | 1 | 2704041 | INFLATION SCREW |
| 505 | 1 | 120021 | SEALING RING |
| 506 | 16 | 300151 | SHELL FIXING SCREW |
| 507 | 8 | HP04000 5070 | ACCUMULATOR BOLT |
| 508 | 1 | 100092 | O-RING |
| 601 | 1 | HP04000 6010 | UPPER |
| 602 | 2 | HP04000 6020 | SIDE |
| 603 | 1 | HP04000 6030 | CASING |
| 614 | 1 | HP04000 6140 | HOLDER |
| 615 | 16 | 310121 | SIDE SHOCK BOLTS |
| 617 | 16 | 290041 | DISK-LOCK WASHER |
| 620 | 4 | 3506200A | WEAR PLATE |
| 622a | 4 | 3506220036 | WEAR PLATE SHIM .036″ |
| 622b | 4 | 3506220048 | WEAR PLATE SHIM .048″ |
| 623 | 1 | HP04000 6230 | LOWER |
| 800 | 1 | HP04000 8000K | SEAL KIT |
| 900a | 1 | HP04000 9100 | MOIL |
| 900b | 1 | HP04000 9010 | CHISEL |
| 900c | 1 | HP04000 9030 | BLUNT |
| 900d | 1 | HP04000 9010 | IL INLINE CHISEL (Special Order) |

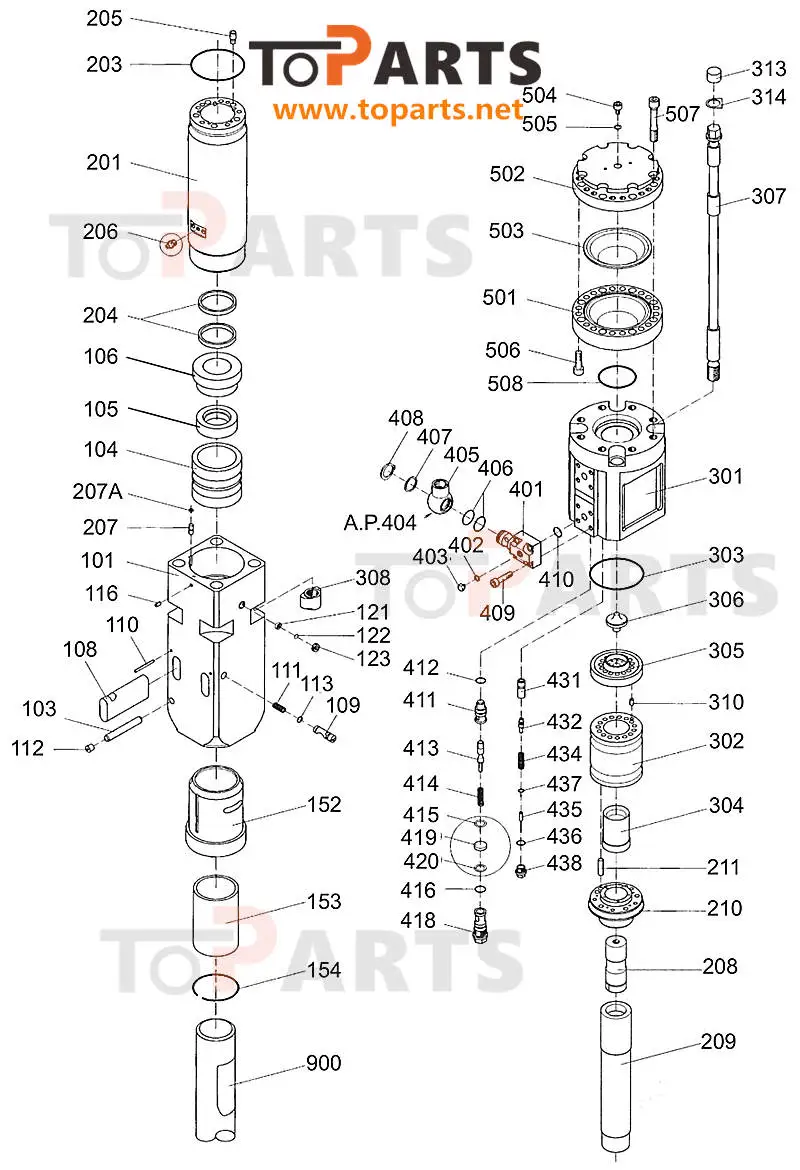

Exploded view
Our customers
Q1: Are you a manufacturer?
A: Yes, our factory was established in 2009.
Q2: Are you sure your product will fit my hydraulic breaker ?
A: Our equipments are suitable for most hydraulic breaker. Show us your excavator model, we’ll confirm the solution.
Q3: Can you produce according to customers’ design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Guangzhou.
Q4: What’s the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T, L/C, Western Union accepted, other terms can be negotiated.
Q5. How is your delivery time?
1) If the goods are in stock for 1-2 days.
2) If the goods are out of stock, they will be molded for 10-20 days.
3) If the goods are out of stock and are not formed, it takes 25-35 days.
Q6: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Serviceable hammer brands: Furukawa, Soosan, Atlas-Copco, Daemo, Komac, Komatsu, Everdigm, Krupp, NPK, MSB, Sandvik, Toku, Toyo, Montabert, D&A, Rammer, General, etc Hydraulic breaker seal kit.
